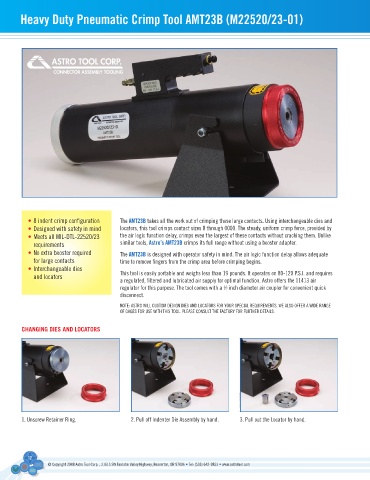

Heavy Duty Pneumatic Crimp tool aMt23b (M22520/23-01)

• 8 indent crimp configuration The aMt23b takes all the work out of crimping those large contacts. Using interchangeable dies and
• Designed with safety in mind locators, this tool crimps contact sizes 8 through 0000. The steady, uniform crimp force, provided by
• Meets all MIL-DTL-22520/23 the air logic function delay, crimps even the largest of these contacts without cracking them. Unlike
requirements similar tools, astro’s aMt23b crimps its full range without using a booster adapter.
• No extra booster required The aMt23b is designed with operator safety in mind. The air logic function delay allows adequate
for large contacts time to remove fingers from the crimp area before crimping begins.
• Interchangeable dies
and locators This tool is easily portable and weighs less than 19 pounds. It operates on 80-120 P.S.I. and requires
a regulated, filtered and lubricated air supply for optimal function. Astro offers the 11413 air
regulator for this purpose. The tool comes with a ⁄2 inch diameter air coupler for convenient quick
1
disconnect.
NOTe: ASTRO WILL CUSTOM DeSIGN DIeS AND LOCATORS FOR YOUR SPeCIAL ReQUIReMeNTS. We ALSO OFFeR A WIDe RANGe
OF GAGeS FOR USe WITH THIS TOOL. PLeASe CONSULT THe FACTORY FOR FURTHeR DeTAILS.

CHANGING DIES AND LOCATORS

1. Unscrew Retainer Ring. 2. Pull off Indenter Die Assembly by hand. 3. Pull out the Locator by hand.
