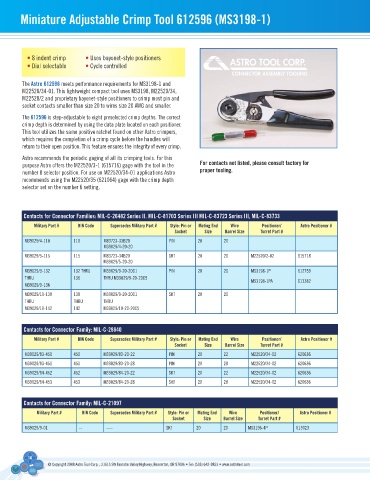

Miniature adjustable Crimp tool 612596 (Ms3198-1)

• 8 indent crimp • Uses bayonet-style positioners
• Dial selectable • Cycle controlled

The astro 612596 meets performance requirements for MS3198-1 and
M22520/34-01. This lightweight compact tool uses MS3198, M22520/34,
M22520/2 and proprietary bayonet-style positioners to crimp most pin and
socket contacts smaller than size 20 to wires size 20 AWG and smaller.
The 612596 is step-adjustable to eight preselected crimp depths. The correct
crimp depth is determined by using the data plate located on each positioner.
This tool utilizes the same positive ratchet found on other Astro crimpers,
which requires the completion of a crimp cycle before the handles will
return to their open position. This feature ensures the integrity of every crimp.

Astro recommends the periodic gaging of all its crimping tools. For this
purpose Astro offers the M22520/3-1 (615716) gage with the tool in the for contacts not listed, please consult factory for
number 8 selector position. For use on M22520/34-01 applications Astro proper tooling.
recommends using the M22520/35 (621064) gage with the crimp depth
selector set on the number 6 setting.

Contacts for Connector families: MIl-C-26482 series II. MIl-C-81703 series III MIl-C-83723 series III, MIl-C-83733
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part #
M39029/4-110 110 M83723-33B20 PIN 20 20
M39029/4-20-20
M39029/5-115 115 M83723-34B20 SKT 20 20 M22520/2-02 615718
M39029/5-20-20
M39029/9-132 132 THRU M39029/9-20-20C1 PIN 20 20 MS3198-1P 612759
THRU 136 THRU M39029/9-20-20C5 MS3198-1PA 613382
M39029/9-136
M39029/10-138 138 M39029/9-20-20C1 SKT 20 20
THRU THRU THRU
M39029/10-142 142 M39029/10-20-20C5

Contacts for Connector family: MIl-C-28840
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part #
M39029/83-450 450 M39029/83-20-22 PIN 20 22 M22520/34-02 620636
M39029/83-451 451 M39029/83-20-28 PIN 20 28 M22520/34-02 620636
M39029/84-452 452 M39029/84-20-22 SKT 20 22 M22520/34-02 620636
M39029/64-453 453 M39029/84-20-28 SKT 20 28 M22520/34-02 620636

Contacts for Connector family: MIl-C-21097
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part #
M39029/9-01 -- ---- SKT 20 20 MS3196-4P 613023

14
