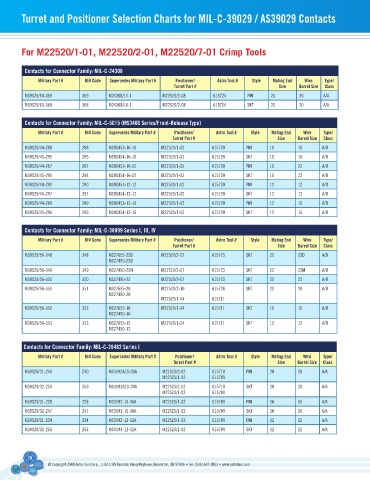

turret and Positioner selection Charts for MIl-C-39029 / as39029 Contacts

For M22520/1-01, M22520/2-01, M22520/7-01 Crimp Tools

Contacts for Connector family: MIl-C-24308
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/64-369 369 M24308/11-1 M22520/2-08 615724 PIN 20 20 A/A
M39029/63-368 368 M24308/10-1 M22520/2-08 615724 SKT 20 20 A/A

Contacts for Connector family: MIl-C-5015 (Ms3400 series/front-Release type)
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/44-288 288 MS90453-16-16 M22520/1-02 615709 PIN 16 16 A/B
M39029/45-295 295 MS90454-16-16 M22520/1-02 615709 SKT 16 16 A/B
M39029/44-287 287 MS90453-16-22 M22520/1-02 615709 PIN 16 22 A/B
M39029/45-294 294 MS90454-16-22 M22520/1-02 615709 SKT 16 22 A/B
M39029/44-290 290 MS90453-12-12 M22520/1-02 615709 PIN 12 12 A/B
M39029/45-297 297 MS90454-12-12 M22520/1-02 615709 SKT 12 12 A/B
M39029/44-289 289 MS90453-12-16 M22520/1-02 615709 PIN 12 16 A/B
M39029/45-296 296 MS90454-12-16 M22520/1-02 615709 SKT 12 16 A/B

Contacts for Connector family: MIl-C-38999 series I, III, Iv
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/56-348 348 MS27655-22D M22520/2-07 615723 SKT 22 22D A/B
MS27490-22D
M39029/56-349 349 MS27490-22M M22520/2-07 615723 SKT 22 22M A/B
M39029/56-350 350 MS27490-22 M22520/2-07 615723 SKT 22 22 A/B
M39029/56-351 351 MS27655-20 M22520/2-10 615726 SKT 20 20 A/B
MS27490-20
M22520/1-04 615711
M39029/56-352 352 MS27655-16 M22520/1-04 615711 SKT 16 16 A/B
MS27490-16
M39029/56-353 353 MS27655-12 M22520/1-04 615711 SKT 12 12 A/B
MS27490-12

Contacts for Connector family: MIl-C-26482 series I
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/31-240 240 MS3192A20-20A M22520/2-02 615718 PIN 20 20 A/A
M22520/1-02 615709
M39029/32-259 259 MS3193A20-20A M22520/2-02 615718 SKT 20 20 A/A
M22520/1-02 615709
M39029/31-228 228 MS3192-16-16A M22520/1-02 615709 PIN 16 16 A/A
M39029/32-247 247 MS3193-16-16A M22520/1-02 615709 SKT 16 16 A/A
M39029/31-234 234 MS3192-12-12A M22520/1-02 615709 PIN 12 12 A/A
M39029/32-253 253 MS3193-12-12A M22520/1-02 615709 SKT 12 12 A/A

10
