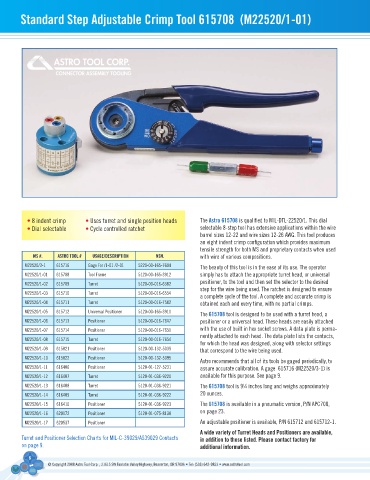

standard step adjustable Crimp tool 615708 (M22520/1-01)

• 8 indent crimp • Uses turret and single position heads The astro 615708 is qualified to MIL-DTL-22520/1. This dial
• Dial selectable • Cycle controlled ratchet selectable 8-step tool has extensive applications within the wire
barrel sizes 12-22 and wire sizes 12-26 AWG. This tool produces
an eight indent crimp configuration which provides maximum
tensile strength for both MS and proprietary contacts when used
Ms #. astRo tool # usaGe/DesCRIPtIon nsn. with wire of various compositions.
M22520/3-1 615716 Gage For /1-01 /2-01 5220-00-165-7604 The beauty of this tool is in the ease of its use. The operator
M22520/1-01 615708 Tool Frame 5120-00-165-3912 simply has to attach the appropriate turret head, or universal
M22520/1-02 615709 Turret 5120-00-016-6382 positioner, to the tool and then set the selector to the desired
step for the wire being used. The ratchet is designed to ensure
M22520/1-03 615710 Turret 5120-00-016-6554
a complete cycle of the tool. A complete and accurate crimp is
M22520/1-04 615711 Turret 5120-00-016-7582 obtained each and every time, with no partial crimps.
M22520/1-05 615712 Universal Positioner 5120-00-165-3911 The 615708 tool is designed to be used with a turret head, a
M22520/1-06 615713 Positioner 5120-00-016-7647 positioner or a universal head. These heads are easily attached
M22520/1-07 615714 Positioner 5120-00-016-7651 with the use of built in hex socket screws. A data plate is perma-
nently attached to each head. The data plate lists the contacts,
M22520/1-08 615715 Turret 5120-00-016-7654
for which the head was designed, along with selector settings
M22520/1-09 615821 Positioner 5120-00-132-5039 that correspond to the wire being used.
M22520/1-10 615822 Positioner 5120-00-132-5095
Astro recommends that all of its tools be gaged periodically, to
M22520/1-11 616406 Positioner 5120-01-127-5231 assure accurate calibration. A gage 615716 (M22520/3-1) is
M22520/1-12 616407 Turret 5120-01-036-9220 available for this purpose. See page 9.
M22520/1-13 616408 Turret 5120-01-036-9221 The 615708 tool is 9 ⁄4 inches long and weighs approximately
1
M22520/1-14 616409 Turret 5120-01-036-9222 20 ounces.
M22520/1-15 616410 Positioner 5120-01-036-9223 The 615708 is available in a pneumatic version, P/N APC708,
M22520/1-16 620172 Positioner 5120-01-075-8138 on page 23.
M22520/1-17 620537 Positioner An adjustable positioner is available, P/N 615712 and 615712-1.
a wide variety of turret Heads and Positioners are available,
Turret and Positioner Selection Charts for MIL-C-39029/AS39029 Contacts in addition to those listed. Please contact factory for
on page 9. additional information.

6
© Copyright 2008 Astro Tool Corp. , 21615 SW Tualatin Valley Highway, Beaverton, OR 97006 • Tel: (503) 642-9853 • www.astrotool.com
