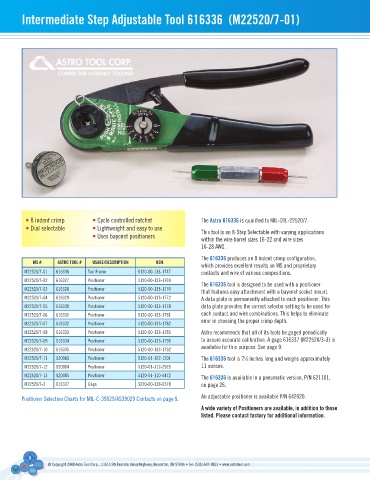

Intermediate step adjustable tool 616336 (M22520/7-01)
• 8 indent crimp • Cycle controlled ratchet The astro 616336 is qualified to MIL-DTL-22520/7.
• Dial selectable • Lightweight and easy to use This tool is an 8-Step Selectable with varying applications
• Uses bayonet positioners within the wire barrel sizes 16-22 and wire sizes
16-28 AWG.
The 616336 produces an 8 indent crimp configuration,
Ms #. astRo tool # usaGe/DesCRIPtIon nsn.
which provides excellent results on MS and proprietary
M22520/7-01 616336 Tool Frame 5120-00-133-1747 contacts and wire of various compositions.
M22520/7-02 616327 Positioner 5120-00-133-1769
The 616336 tool is designed to be used with a positioner
M22520/7-03 616328 Positioner 5120-00-133-1770 that features easy attachment with a bayonet socket mount.
M22520/7-04 616329 Positioner 5120-00-133-1772 A data plate is permanently attached to each positioner. This
M22520/7-05 616330 Positioner 5120-00-133-1778 data plate provides the correct selector setting to be used for
M22520/7-06 616331 Positioner 5120-00-133-1781 each contact and wire combinations. This helps to eliminate
error in choosing the proper crimp depth.
M22520/7-07 616332 Positioner 5120-00-133-1782
M22520/7-08 616333 Positioner 5120-00-133-1785 Astro recommends that all of its tools be gaged periodically
M22520/7-09 616334 Positioner 5120-00-133-1790 to assure accurate calibration. A gage 616337 (M22520/3-3) is
available for this purpose. See page 9.
M22520/7-10 616335 Positioner 5120-00-133-1792
M22520/7-11 620083 Positioner 5120-01-122-1201 The 616336 tool is 7 ⁄4 inches long and weighs approximately
1
M22520/7-12 620084 Positioner 5120-01-112-2925 11 ounces.
M22520/7-13 620085 Positioner 5120-01-110-4472 The 616336 is available in a pneumatic version, P/N 621101,
M22520/3-3 616337 Gage 5220-00-338-0378 on page 26.
Positioner Selection Charts for MIL-C-39029/AS39029 Contacts on page 9. An adjustable positioner is available P/N 642020.
a wide variety of Positioners are available, in addition to those
listed. Please contact factory for additional information.
