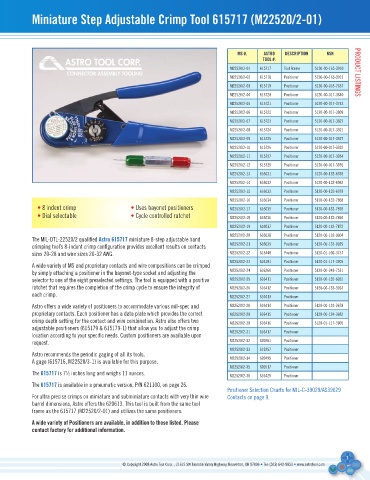

Miniature step adjustable Crimp tool 615717 (M22520/2-01)

Ms #. astRo DesCRIPtIon nsn
tool #.
M22520/2-01 615717 Tool Frame 5120-00-165-3910
M22520/2-02 615718 Positioner 5120-00-165-3913 PRODUCT LISTINGS
M22520/2-03 615719 Positioner 5120-00-016-7657
M22520/2-04 615720 Positioner 5120-00-017-3640
M22520/2-05 615721 Positioner 5120-00-017-3742
M22520/2-06 615722 Positioner 5120-00-017-3809
M22520/2-07 615723 Positioner 5120-00-017-3827
M22520/2-08 615724 Positioner 5120-00-017-3921
M22520/2-09 615725 Positioner 5120-00-017-3927
M22520/2-10 615726 Positioner 5120-00-017-3932
M22520/2-11 615727 Positioner 5120-00-017-3934
M22520/2-12 615729 Positioner 5120-00-017-3935
M22520/2-13 616031 Positioner 5120-00-132-6939
M22520/2-14 616032 Positioner 5120-00-132-6962
M22520/2-15 616033 Positioner 5120-00-132-6978
M22520/2-16 616034 Positioner 5120-00-132-7868
• 8 indent crimp • Uses bayonet positioners M22520/2-17 616035 Positioner 5120-00-132-7893
• Dial selectable • Cycle controlled ratchet M22520/2-18 616036 Positioner 5120-00-132-7894
M22520/2-19 616037 Positioner 5120-00-132-7872
M22520/2-20 616038 Positioner 5120-00-132-9004
The MIL-DTL-22520/2 qualified astro 615717 miniature 8-step adjustable hand
crimping tool’s 8-indent crimp configuration provides excellent results on contacts M22520/2-21 616039 Positioner 5120-00-133-0029
sizes 20-28 and wire sizes 20-32 AWG. M22520/2-22 615448 Positioner 5120-01-106-3737
M22520/2-23 616191 Positioner 5120-01-117-3905
A wide variety of MS and proprietary contacts and wire compositions can be crimped
by simply attaching a positioner in the bayonet-type socket and adjusting the M22520/2-24 616260 Positioner 5120-00-348-7531
selector to one of the eight preselected settings. The tool is equipped with a positive M22520/2-25 616411 Positioner 5120-00-132-6932
ratchet that requires the completion of the crimp cycle to ensure the integrity of M22520/2-26 616412 Positioner 5120-00-133-3263
each crimp. M22520/2-27 616413 Positioner
Astro offers a wide variety of positioners to accommodate various mil-spec and M22520/2-28 616414 Positioner 5120-00-124-3678
proprietary contacts. each positioner has a data plate which provides the correct M22520/2-29 616415 Positioner 5120-00-124-3682
crimp depth setting for the contact and wire combination. Astro also offers two M22520/2-30 616416 Positioner 5120-01-117-3905
adjustable positioners (615179 & 615179-1) that allow you to adjust the crimp
location according to your specific needs. Custom positioners are available upon M22520/2-31 616417 Positioner
request. M22520/2-32 620261 Positioner
M22520/2-33 615257 Positioner
Astro recommends the periodic gaging of all its tools.
A gage (615716, M22520/3-1) is available for this purpose. M22520/2-34 620499 Positioner
M22520/2-35 620517 Positioner
The 615717 is 7 ⁄2 inches long and weighs 11 ounces. M22520/2-36 616429 Positioner
1
The 615717 is available in a pneumatic version, P/N 621100, on page 26.
Positioner Selection Charts for MIL-C-39029/AS39029
For ultra precise crimps on miniature and subminiature contacts with very thin wire Contacts on page 9.
barrel dimensions, Astro offers the 620613. This tool is built from the same tool
frame as the 615717 (M22520/2-01) and utilizes the same positioners.
a wide variety of Positioners are available, in addition to those listed. Please
contact factory for additional information.

7
