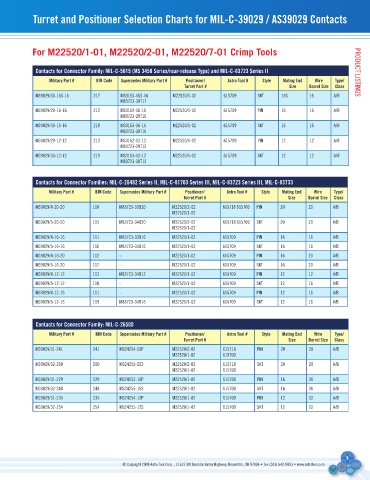

Intermediate step adjustable tool 616336 (M22520/7-01) turret and Positioner selection Charts for MIl-C-39029 / as39029 Contacts

For M22520/1-01, M22520/2-01, M22520/7-01 Crimp Tools

Contacts for Connector family: MIl-C-5015 (Ms 3450 series/rear-release type) and MIl-C-83723 series II PRODUCT LISTINGS
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/30-165-16 217 MS3163-16S-16 M22520/1-02 615709 SKT 16S 16 A/B
M83723-30T17
M39029/29-16-16 212 MS3162-16-16 M22520/1-02 615709 PIN 16 16 A/B
M83723-29T16
M39029/30-16-16 218 MS3163-16-16 M22520/1-02 615709 SKT 16 16 A/B
M83723-30T16
M39029/29-12-12 213 MS3162-12-12 M22520/1-02 615709 PIN 12 12 A/B
M83723-29T12
M39029/30-12-12 219 MS3163-12-12 M22520/1-02 615709 SKT 12 12 A/B
M83723-30T12

Contacts for Connector families: MIl-C-26482 series II, MIl-C-81703 series III, MIl-C-83723 series III, MIl-C-83733
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/4-20-20 110 M83723-33B20 M22520/2-02 615718 615709 PIN 20 20 A/B
M22520/1-02
M39029/5-20-20 115 M83723-34B20 M22520/2-02 615718 615709 SKT 20 20 A/B
M22520/1-02
M39029/4-16-16 111 M83723-33B16 M22520/1-02 615709 PIN 16 16 A/B
M39029/5-16-16 116 M83723-34B16 M22520/1-02 615709 SKT 16 16 A/B
M39029/4-16-20 112 - M22520/1-02 615709 PIN 16 20 A/B
M39029/5-16-20 117 - M22520/1-02 615709 SKT 16 20 A/B
M39029/4-12-12 113 M83723-34B12 M22520/1-02 615709 PIN 12 12 A/B
M39029/5-12-12 118 - M22520/1-02 615709 SKT 12 16 A/B
M39029/4-12-16 111 - M22520/1-02 615709 PIN 12 16 A/B
M39029/5-12-16 119 M83723-34B16 M22520/1-02 615709 SKT 12 16 A/B

Contacts for Connector family: MIl-C-26500
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/31-241 241 MS24254-20P M22520/2-02 615718 PIN 20 20 A/B
M22520/1-02 615709
M39029/32-260 260 MS24255-20S M22520/2-02 615718 SKT 20 20 A/B
M22520/1-02 615709
M39029/31-229 229 MS24253-16P M22520/1-02 615709 PIN 16 16 A/B
M39029/32-248 248 MS24255-16S M22520/1-02 615709 SKT 16 16 A/B
M39029/31-235 235 MS24254-12P M22520/1-02 615709 PIN 12 12 A/B
M39029/32-254 254 MS24255-12S M22520/1-02 615709 SKT 12 12 A/B

9
