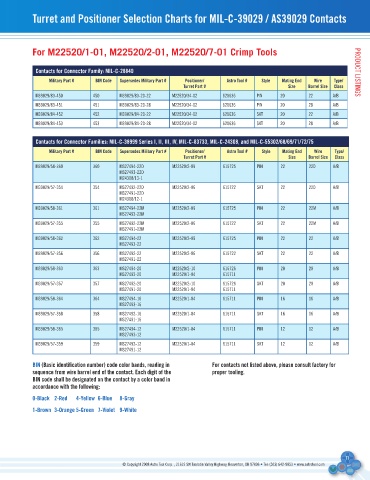

turret and Positioner selection Charts for MIl-C-39029 / as39029 Contacts

For M22520/1-01, M22520/2-01, M22520/7-01 Crimp Tools

Contacts for Connector family: MIl-C-28840 PRODUCT LISTINGS
Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/83-450 450 M39029/83-20-22 M22520/34-02 620636 PIN 20 22 A/B
M39029/83-451 451 M39029/83-20-28 M22520/34-02 620636 PIN 20 28 A/B
M39029/84-452 452 M39029/84-20-22 M22520/34-02 620636 SKT 20 22 A/B
M39029/84-453 453 M39029/84-20-28 M22520/34-02 620636 SKT 20 28 A/B

Contacts for Connector families: MIl-C-38999 series I, II, III, Iv, MIl-C-83733, MIl-C-24308, and MIl-C-55302/68/69/71/72/75

Military Part # bIn Code supersedes Military Part # Positioner/ astro tool # style Mating end Wire type/
turret Part # size barrel size Class
M39029/58-360 360 MS27494-22D M22520/2-09 615725 PIN 22 22D A/B
MS27493-22D
M24308/13-1
M39029/57-354 354 MS27492-22D M22520/2-06 615722 SKT 22 22D A/B
MS27491-22D
M24308/12-1
M39029/58-361 361 MS27494-22M M22520/2-09 615725 PIN 22 22M A/B
MS27493-22M
M39029/57-355 355 MS27492-22M M22520/2-06 615722 SKT 22 22M A/B
MS27491-22M
M39029/58-362 362 MS27494-22 M22520/2-09 615725 PIN 22 22 A/B
MS27493-22
M39029/57-356 356 MS27492-22 M22520/2-06 615722 SKT 22 22 A/B
MS27491-22
M39029/58-363 363 MS27494-20 M22520/2-10 615726 PIN 20 20 A/B
MS27493-20 M22520/1-04 615711
M39029/57-357 357 MS27492-20 M22520/2-10 615726 SKT 20 20 A/B
MS27491-20 M22520/1-04 615711
M39029/58-364 364 MS27494-16 M22520/1-04 615711 PIN 16 16 A/B
MS27493-16
M39029/57-358 358 MS27492-16 M22520/1-04 615711 SKT 16 16 A/B
MS27491-16
M39029/58-365 365 MS27494-12 M22520/1-04 615711 PIN 12 12 A/B
MS27493-12
M39029/57-359 359 MS27492-12 M22520/1-04 615711 SKT 12 12 A/B
MS27491-12
bIn (basic identification number) code color bands, reading in for contacts not listed above, please consult factory for
sequence from wire barrel end of the contact. each digit of the proper tooling.
bIn code shall be designated on the contact by a color band in
accordance with the following:
0-black 2-Red 4-Yellow 6-blue 8-Gray

1-brown 3-orange 5-Green 7-violet 9-White

11
