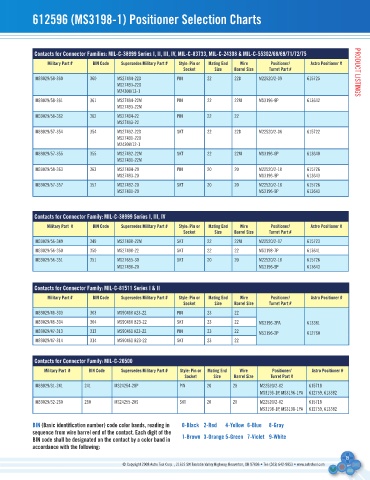

612596 (Ms3198-1) Positioner selection Charts

Contacts for Connector families: MIl-C-38999 series I, II, III, Iv, MIl-C-83733, MIl-C-24308 & MIl-C-55302/68/69/71/72/75
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part # PRODUCT LISTINGS
M39029/58-360 360 MS27494-22D PIN 22 22D M22520/2-09 615725
MS27493-22D
M24308/13-1
M39029/58-361 361 MS27494-22M PIN 22 22M MS3196-8P 613642
MS27493-22M
M39029/58-362 362 MS27494-22 PIN 22 22
MS27493-22
M39029/57-354 354 MS27492-22D SKT 22 22D M22520/2-06 615722
MS27491-22D
M24308/12-1
M39029/57-355 355 MS27492-22M SKT 22 22M MS3196-6P 613640
MS27491-22M
M39029/58-363 363 MS27494-20 PIN 20 20 M22520/2-10 615726
MS27493-20 MS3196-9P 613643
M39029/57-357 357 MS27492-20 SKT 20 20 M22520/2-10 615726
MS27491-20 MS3196-9P 613643

Contacts for Connector family: MIl-C-38999 series I, III, Iv
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part #
M39029/56-349 349 MS27490-22M SKT 22 22M M22520/2-07 615723
M39029/56-350 350 MS27490-22 SKT 22 22 MS3198-7P 613641
M39029/56-351 351 MS27655-30 SKT 20 20 M22520/2-10 615726
MS27490-20 MS3196-9P 613643

Contacts for Connector family: MIl-C-81511 series I & II
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part #
M39029/46-303 303 MS90460 A23-22 PIN 23 22
M39029/46-304 304 MS90460 B23-22 SKT 23 22 MS3196-2PA 613381
M39029/47-313 313 MS90461 A23-22 PIN 23 22 MS3196-2P 612760
M39029/47-314 314 MS90461 B23-22 SKT 23 22

Contacts for Connector family: MIl-C-26500
Military Part # bIn Code supersedes Military Part # style: Pin or Mating end Wire Positioner/ astro Positioner #
socket size barrel size turret Part #
M39029/31-241 241 MS24254-20P PIN 20 20 M22520/2-02 615718
MS3196-1P, MS3196-1PA 612759, 613382
M39029/32-260 260 MS24255-20S SKT 20 20 M22520/2-02 615718
MS3198-1P, MS3198-1PA 612759, 613382

bIn (basic identification number) code color bands, reading in 0-black 2-Red 4-Yellow 6-blue 8-Gray
sequence from wire barrel end of the contact. each digit of the
bIn code shall be designated on the contact by a color band in 1-brown 3-orange 5-Green 7-violet 9-White
accordance with the following:

15
