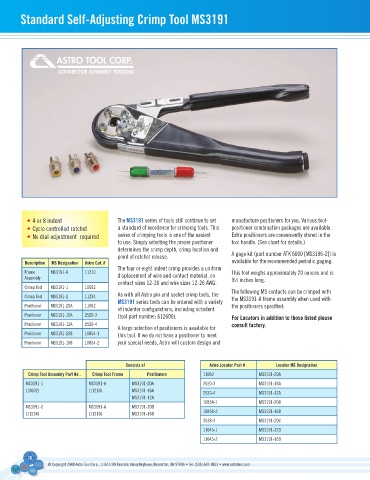

P. 17
standard self-adjusting Crimp tool Ms3191
• 4 or 8 indent The Ms3191 series of tools still continue to set manufacture positioners for you. Various tool-
• Cycle controlled ratchet a standard of excellence for crimping tools. This positioner combination packages are available.
• No dial adjustment required series of crimping tools is one of the easiest extra positioners are conveniently stored in the
to use. Simply selecting the proper positioner tool handle. (See chart for details.)
determines the crimp depth, crimp location and
point of ratchet release. A gage kit (part number ATK 6000 [MS3196-2]) is
Description Ms Designation astro Cat. # available for the recommended periodic gaging.
The four or eight indent crimp provides a uniform
Frame MS3191-A 11210 displacement of wire and contact material, on This tool weighs approximately 20 ounces and is
Assembly 9 ⁄2 inches long.
1
contact sizes 12-20 and wire sizes 12-26 AWG.
Crimp Tool MS3191-1 10692 The following MS contacts can be crimped with
Crimp Tool MS3191-2 11234 As with all Astro pin and socket crimp tools, the the MS3191-A frame assembly when used with
Ms3191 series tools can be ordered with a variety
Positioner MS3191-20A 11062 the positioners specified:
of indentor configurations, including octadent
Positioner MS3191-16A 2520-3 (tool part number: 612600). for locators in addition to those listed please
Positioner MS3191-12A 2520-4 consult factory.
A large selection of positioners is available for
Positioner MS3191-208 10854-1 this tool. If we do not have a positioner to meet
Positioner MS3191-168 10854-2 your special needs, Astro will custom design and
Consists of astro locator Part # . locator Ms Designation
Crimp tool assembly Part no . Crimp tool frame Positioners 11062 MS3191-20A
MS3191-1 MS3191-A MS3191-20A 2520-3 MS3191-16A
(10692) (11210) MS3191-16A 2520-4 MS3191-12A
MS3191-12A
10854-1 MS3191-208
MS3191-2 MS3191-A MS3191-20B
(11234) (11210) MS3191-16B 10854-2 MS3191-168
3538-3 MS3191-20C
11045-1 MS3191-22D
11045-2 MS3191-16D
16
