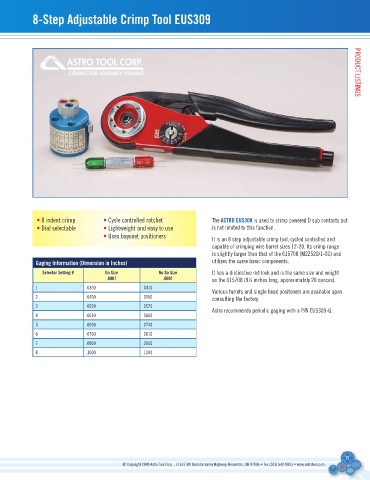

8-step adjustable Crimp tool eus309 PRODUCT LISTINGS

• 8 indent crimp • Cycle controlled ratchet The astRo eus309 is used to crimp powered D sub contacts but
• Dial selectable • Lightweight and easy to use is not limited to this function.
• Uses bayonet positioners
It is an 8 step adjustable crimp tool, cycled controlled and
capable of crimping wire barrel sizes 12-20. Its crimp range
is slightly larger than that of the 615708 (M22520/1-01) and
Gaging Information (Dimension in Inches) utilizes the same basic components.
selector setting # Go size no Go size It has a distinctive red look and is the same size and weight
.0001 .0001 as the 615708 (9 ⁄4 inches long, approximately 20 ounces).
1
1 .0360 .0410
Various turrets and single head positoners are available upon
2 .0450 .0500 consulting the factory.
3 .0520 .0570
Astro recommends periodic gaging with a P/N eUS309-G.
4 .0610 .0660
5 .0690 .0740
6 .0760 .0810
7 .0860 .0950
8 .1000 .1100

17
