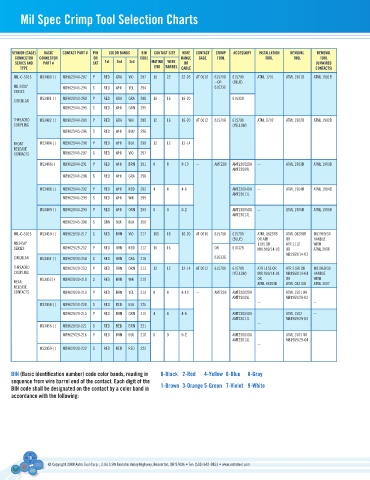

Mil spec Crimp tool selection Charts

venDoR (CaGe) basIC ContaCt PaRt # PIn ColoR banDs bIn ContaCt sIZe WIRe ContaCt CRIMP aCCessoRY InstallatIon ReMoval ReMoval
ConneCtoR ConneCtoR oR CoDe RanGe GaGe tool tool tool tool
seRIes anD PaRt # sKt 1st 2nd 3rd MatInG WIRe oR (unWIReD
tYPe enD baRRel Cable ContaCts)
MIL-C-5015 MS3400 ( ) M39029/44-287 P ReD GRA VIO 287 16 22 22-26 AT 0016 615708 615709 ATML 1701 ATML 1901B ATML 1901B
--OR (BLUe)
MS 3400” M39029/45-294 S ReD WHI YeL 294 616336
SeRIeS
MS3401 ( ) M39029/44-288 P ReD GRA GRA 288 16 16 16-20 616328
CIRCULAR
M39029/45-295 S ReD WHI GRN 295
THReADeD MS3402 ( ) M39029/44-289 P ReD GRA WHI 289 12 16 16-20 AT 0012 615708 615709 ATML 1702 ATML 1902B ATML 1902B
COUPLING (YeLLOW)
M39029/45-296 S ReD WHI BLU 296

FRONT MS3404 ( ) M39029/44-290 P ReD WHI BLK 290 12 12 12-14
ReLeASe
CONTACTS M39029/45-297 S ReD WHI VIO 297
MS3406( ) M39029/44-291 P ReD WHI BRN 291 8 8 8-10 -- AMT23B AMT23002DA -- ATML 1903B ATML 1903B
AMT23009L

M39029/45-298 S ReD WHI GRA 298
MS3408 ( ) M39029/44-292 P ReD WHI ReD 292 4 4 4-6 AMT23004DA -- ATML 1904B ATML 1904B
AMT23011L
M39029/45-299 S ReD WHI WHI 299
MS3409 ( ) M39029/44-293 P ReD WHI ORN 293 0 0 0-2 AMT23005DA -- ATML 1905B ATML 1905B
AMT23013L
M39029/45-300 S ORN BLK BLK 300

MIL-C-5015 MS3450 ( ) M39029/30-217 S ReD BRN VIO 217 16S 16 16-20 AT 0016 615708 615709 ATML 08207B ATML 08208B M81969/30
(BLUe) OR ATR OR HANDLe
MS3450” 1105 OR ATR 2112 WITH
SeRIeS M39029/29-212 P ReD BRN ReD 212 16 16 OR 616328 M81969/14-03 OR ATML 3006
M81969/14-03
CIRCULAR MS3451 ( ) M39029/30-218 S ReD BRN GRA 218 616336
THReADeD M39029/29-213 P ReD BRN ORN 213 12 12 12-14 AT 0012 615708 615709 ATR 1153 OR ATR 2160 OR M81969/30
COUPLING (YeLLOW) M81969/14-04 M81969/14-04 HANDLe
MS3452( ) M39029/30-219 S ReD BRN WHI 219 OR OR WITH
ReAR ATML 08209B ATML 08210B ATML 3007
ReLeASe
CONTACTS M39029/29-214 P ReD BRN YeL 214 8 8 8-10 -- AMT23B AMT23002DA ATML 1501 OR
AMT23009L M81969/29-02
-- --
MS3454 ( ) M39029/30-220 S ReD ReD BLK 220
M39029/29-215 P ReD BRN GRN 215 4 4 4-6 AMT23004DA ATML 1502 --
AMT23011L M81969/29-03
--
MS3456 ( ) M39029/30-221 S ReD ReD BRN 221
M39029/29-216 P ReD BRN BLU 216 0 0 0-2 AMT23005DA ATML 1503 OR
AMT23013L M81969/29-04
--
MS3459 ( ) M39029/30-222 S ReD ReD ReD 222

bIn (basic identification number) code color bands, reading in 0-black 2-Red 4-Yellow 6-blue 8-Gray
sequence from wire barrel end of the contact. each digit of the
bIn code shall be designated on the contact by a color band in 1-brown 3-orange 5-Green 7-violet 9-White
accordance with the following:
