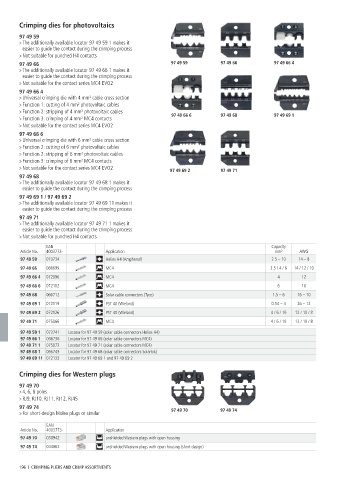

Page 196 - 凯尼派克英文通用样本2024knipex

Crimping dies for photovoltaics
97 49 59
> The additionally available locator 97 49 59 1 makes it
easier to guide the contact during the crimping process
> Not suitable for punched H4 contacts
97 49 66 97 49 59 97 49 66 97 49 66 4
> The additionally available locator 97 49 66 1 makes it
easier to guide the contact during the crimping process
> Not suitable for the contact series MC4 EVO2
97 49 66 4
> Universal crimping die with 4 mm² cable cross section
> Function 1: cutting of 4 mm² photovoltaic cables
> Function 2: stripping of 4 mm² photovoltaic cables
> Function 3: crimping of 4 mm² MC4 contacts 97 49 66 6 97 49 68 97 49 69 1
> Not suitable for the contact series MC4 EVO2
97 49 66 6
> Universal crimping die with 6 mm² cable cross section
> Function 2: cutting of 6 mm² photovoltaic cables
> Function 2: stripping of 6 mm² photovoltaic cables
> Function 3: crimping of 6 mm² MC4 contacts
> Not suitable for the contact series MC4 EVO2 97 49 69 2 97 49 71
97 49 68
> The additionally available locator 97 49 68 1 makes it
easier to guide the contact during the crimping process
97 49 69 1 / 97 49 69 2
> The additionally available locator 97 49 69 11 makes it
easier to guide the contact during the crimping process
97 49 71
> The additionally available locator 97 49 71 1 makes it
easier to guide the contact during the crimping process
> Not suitable for punched H4 contacts

EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 59 073734 Helios H4 (Amphenol) 2.5 – 10 14 – 8

97 49 66 066699 MC4 2.5 / 4 / 6 14 / 12 / 10

97 49 66 4 072096 MC4 4 12

97 49 66 6 072102 MC4 6 10

97 49 68 066712 Solar cable connectors (Tyco) 1.5 – 6 16 – 10
97 49 69 1 072119 PST 40 (Wieland) 0.14 – 4 26 – 12

97 49 69 2 072126 PST 40 (Wieland) 4 / 6 / 10 12 / 10 / 8
97 49 71 075066 MC4 4 / 6 / 10 12 / 10 / 8

97 49 59 1 073741 Locator for 97 49 59 (solar cable connectors Helios H4)
97 49 66 1 066736 Locator for 97 49 66 (solar cable connectors MC4)
97 49 71 1 075073 Locator for 97 49 71 (solar cable connectors MC4)
97 49 68 1 066743 Locator for 97 49 68 (solar cable connectors Solarlok)
97 49 69 11 072133 Locator for 97 49 69 1 and 97 49 69 2

Crimping dies for Western plugs
97 49 70
> 4, 6, 8 poles
> RJ9, RJ10, RJ11, RJ12, RJ45
97 49 74
> For short-design Molex plugs or similar 97 49 70 97 49 74

EAN
Article No. 4003773- Application
97 49 70 030942 unshielded Western plugs with open housing

97 49 74 044062 unshielded Western plugs with open housing (short design)

196 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
