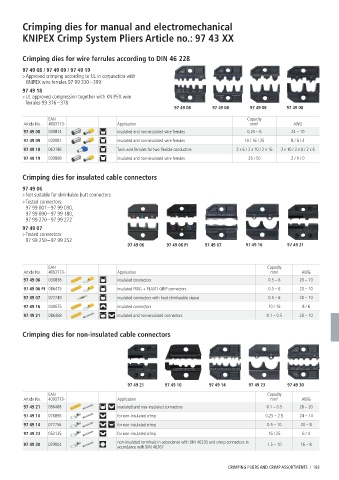

Crimping dies for manual and electromechanical

KNIPEX Crimp System Pliers Article no.: 97 43 XX

Crimping dies for wire ferrules according to DIN 46 228

97 49 08 / 97 49 09 / 97 49 19
> Approved crimping according to UL in conjunction with
KNIPEX wire ferrules 97 99 330 – 399
97 49 18
> UL approved compression together with KNIPEX wire
ferrules 99 376 – 378
97 49 08 97 49 08 97 49 08 97 49 08

EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 08 030874 insulated and non-insulated wire ferrules 0,25 – 6 24 – 10
97 49 09 030881 insulated and non-insulated wire ferrules 10 / 16 / 25 8 / 6 / 4

97 49 18 063186 Twin wire ferrules for two flexible conductors 2 x 6 / 2 x 10 / 2 x 16 2 x 10 / 2 x 8 / 2 x 6
97 49 19 030898 insulated and non-insulated wire ferrules 35 / 50 2 / 1 / 0

Crimping dies for insulated cable connectors

97 49 06
> Not suitable for shrinkable butt connectors
> Tested connectors:
97 99 001 – 97 99 030,
97 99 090 – 97 99 180,
97 99 270 – 97 99 272
97 49 07
> Tested connectors:
97 99 250 – 97 99 252
97 49 06 97 49 06 PI 97 49 07 97 49 16 97 49 21

EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 06 030836 insulated connectors 0.5 – 6 20 – 10
97 49 06 PI 086475 insulated PIDG + PLASTI-GRIP connectors 0.5 – 6 20 – 10

97 49 07 077749 insulated connectors with heat shrinkeable sleeve 0.5 – 6 20 – 10
97 49 16 040675 insulated connectors 10 / 16 8 / 6

97 49 21 086468 insulated and non-insulated connectors 0.1 – 0.5 20 – 10

Crimping dies for non-insulated cable connectors

97 49 21 97 49 10 97 49 14 97 49 23 97 49 30
EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 21 086468 insulated and non-insulated connectors 0.1 – 0.5 28 – 20

97 49 10 076896 for non-insulated crimp 0.25 – 2.5 24 – 14

97 49 14 077756 for non-insulated crimp 0.5 – 10 20 – 8

97 49 23 052135 for non-insulated crimp 16 / 25 6 / 4

non-insulated terminals in accordance with DIN 46235 and crimp connectors in
97 49 30 030904 1.5 – 10 16 – 8
accordance with DIN 46267

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 193
