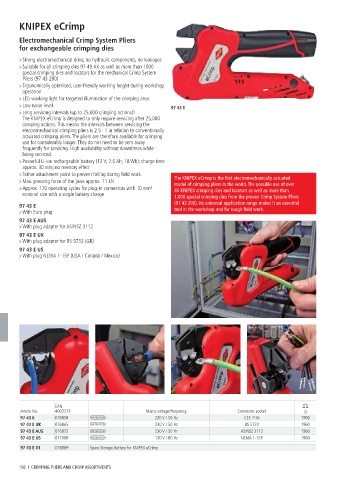

Page 192 - 凯尼派克英文通用样本2024knipex

KNIPEX eCrimp

Electromechanical Crimp System Pliers
for exchangeable crimping dies
> Strong electromechanical drive, no hydraulic components, no leakages
> Suitable for all crimping dies 97 49 XX as well as more than 1000
special crimping dies and locators for the mechanical Crimp System
Pliers (97 43 200)
> Ergonomically optimised, user-friendly working height during workshop
operation
> LED working light for targeted illumination of the crimping area
> Low noise level 97 43 E
> Long servicing intervals (up to 25,000 crimping actions)!
The KNIPEX eCrimp is designed to only require servicing after 25,000
crimping actions. This means the intervals between servicing the
electromechanical crimping pliers is 2.5 : 1 in relation to conventionally
actuated crimping pliers. The pliers are therefore available for crimping
use for considerably longer. They do not need to be sent away
frequently for servicing. High availability without downtimes while
being serviced.
> Powerful Li-ion rechargeable battery (12 V; 2.0 Ah; 18 Wh); charge time
approx. 30 min; no memory effect
> Tether attachment point to prevent falling during field work
> Max. pressing force of the jaws approx. 11 kN The KNIPEX eCrimp is the first electromechanically actuated
model of crimping pliers in the world. The possible use of over
> Approx. 170 operating cycles for plug-in connectors with 10 mm² 40 KNIPEX crimping dies and locators as well as more than
nominal size with a single battery charge 1,000 special crimping dies from the proven Crimp System Pliers
97 43 E (97 43 200). Its universal application range makes it an essential
> With Euro plug tool in the workshop and for rough field work.
97 43 E AUS
> With plug adapter for AS/NSZ 3112
97 43 E UK
> With plug adapter for BS 5733 (GB)
97 43 E US
> With plug NEMA 1-15P (USA / Canada / Mexico)

EAN
Article No. 4003773- Mains voltage/frequency Connector socket g
97 43 E 076858 230 V / 50 Hz CEE 7/16 1960
97 43 E UK 076865 230 V / 50 Hz BS 5733 1960
97 43 E AUS 076872 230 V / 50 Hz AS/NSZ 3112 1960
97 43 E US 077008 120 V / 60 Hz NEMA 1-15P 1960

97 43 E 01 076889 Spare Storage Battery for KNIPEX eCrimp

192 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
