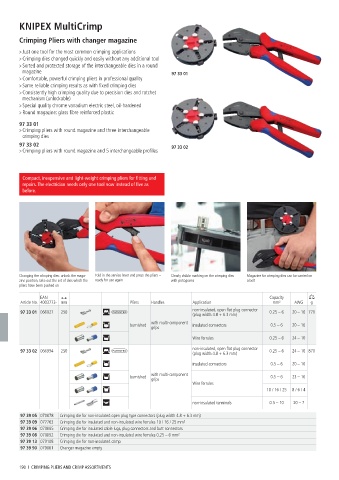

KNIPEX MultiCrimp

Crimping Pliers with changer magazine

> Just one tool for the most common crimping applications
> Crimping dies changed quickly and easily without any additional tool
> Sorted and protected storage of the interchangeable dies in a round
magazine 97 33 01
> Comfortable, powerful crimping pliers in professional quality
> Same reliable crimping results as with fixed crimping dies
> Consistently high crimping quality due to precision dies and ratchet
mechanism (unlockable)
> Special quality chrome vanadium electric steel, oil-hardened
> Round magazine: glass fibre reinforced plastic
97 33 01
> Crimping pliers with round magazine and three interchangeable
crimping dies
97 33 02 97 33 02
> Crimping pliers with round magazine and 5 interchangeable profiles

Compact, inexpensive and light-weight crimping pliers for fitting and
repairs. The electrician needs only one tool now instead of five as
before.

Changing the crimping dies: unlock the maga- Fold in the service lever and press the pliers – Clearly visible marking on the crimping dies Magazine for crimping dies can be carried on
zine position, take out the set of dies which the ready for use again with pictograms a belt
pliers have been pushed on

EAN Capacity
Article No. 4003773- mm Pliers Handles Application mm² AWG g
97 33 01 066927 250 non-insulated, open flat plug connector 0.25 – 6 20 – 10 770
(plug width 4.8 + 6.3 mm)
with multi-component
burnished grips insulated connectors 0.5 – 6 20 – 10

Wire ferrules 0.25 – 6 24 – 10
non-insulated, open flat plug connector
97 33 02 066934 250 0.25 – 6 24 – 10 870
(plug width 4.8 + 6.3 mm)
insulated connectors 0.5 – 6 20 – 10
with multi-component
burnished grips 0.5 – 6 23 – 10
Wire ferrules
10 / 16 / 25 8 / 6 / 4

non-insulated terminals 0.5 – 10 20 – 7
97 39 05 070078 Crimping die for non-insulated open plug type connectors (plug width 4.8 + 6.3 mm)
97 39 09 077763 Crimping die for insulated and non-insulated wire ferrules 10 / 16 / 25 mm²
97 39 06 070085 Crimping die for insulated cable lugs, plug connectors and butt connectors
97 39 08 070092 Crimping die for insulated and non-insulated wire ferrules 0,25 – 6 mm²
97 39 13 070108 Crimping die for non-insulated crimp
97 39 90 070061 Changer magazine empty

190 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
