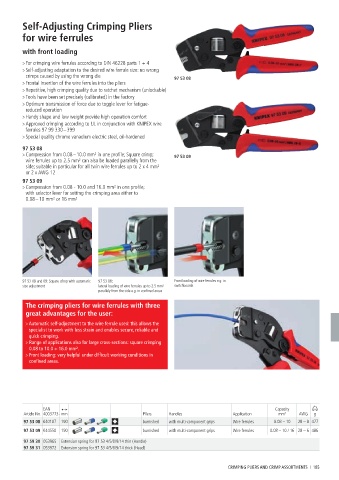

Page 185 - 凯尼派克英文通用样本2024knipex

Self-Adjusting Crimping Pliers

for wire ferrules

with front loading
> For crimping wire ferrules according to DIN 46228 parts 1 + 4
> Self-adjusting adaptation to the desired wire ferrule size: no wrong
crimps caused by using the wrong die 97 53 08
> Frontal insertion of the wire ferrules into the pliers
> Repetitive, high crimping quality due to ratchet mechanism (unlockable)
> Tools have been set precisely (calibrated) in the factory
> Optimum transmission of force due to toggle lever for fatigue-
reduced operation
> Handy shape and low weight provide high operation comfort
> Approved crimping according to UL in conjunction with KNIPEX wire
ferrules 97 99 330 – 399
> Special quality chrome vanadium electric steel, oil-hardened

97 53 08
> Compression from 0.08 – 10.0 mm² in one profile; Square crimp; 97 53 09
wire ferrules up to 2.5 mm² can also be loaded parallelly from the
side; suitable in particular for all twin wire ferrules up to 2 x 4 mm²
or 2 x AWG 12
97 53 09
> Compression from 0.08 - 10.0 and 16.0 mm² in one profile;
with selector lever for setting the crimping area either to
0.08 – 10 mm² or 16 mm²

97 53 08 and 09: Square crimp with automatic 97 53 08: Front loading of wire ferrules e.g. in
size adjustment lateral loading of wire ferrules up to 2.5 mm² switchboards
parallely from the side e.g. in confined areas

The crimping pliers for wire ferrules with three
great advantages for the user:
> Automatic self-adjustment to the wire ferrule used: this allows the
specialist to work with less strain and enables secure, reliable and
quick crimping.
> Range of applications also for large cross-sections: square crimping
0.08 to 10.0 + 16.0 mm².
> Front loading: very helpful under difficult working conditions in
confined areas.

EAN Capacity
Article No. 4003773- mm Pliers Handles Application mm² AWG g
97 53 08 040187 190 burnished with multi-component grips Wire ferrules 0.08 – 10 28 – 8 477

97 53 09 044550 190 burnished with multi-component grips Wire ferrules 0.08 – 10 / 16 28 – 6 486
97 59 30 053965 Extension spring for 97 53 4/5/8/9/14 thin (Handle)
97 59 31 053972 Extension spring for 97 53 4/5/8/9/14 thick (Head)

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 185
