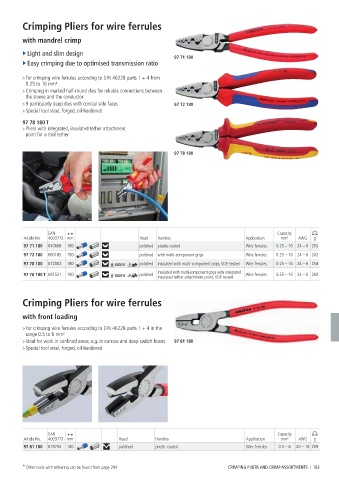

Page 183 - 凯尼派克英文通用样本2024knipex

Crimping Pliers for wire ferrules

with mandrel crimp

► Light and slim design
97 71 180
► Easy crimping due to optimised transmission ratio

> For crimping wire ferrules according to DIN 46228 parts 1 + 4 from
0.25 to 16 mm²
> Crimping in marked half-round dies for reliable connections between
the sleeve and the conductor
> 9 particularly deep dies with conical side faces 97 72 180
> Special tool steel, forged, oil-hardened
97 78 180 T
> Pliers with integrated, insulated tether attachment
point for a tool tether

97 78 180

EAN Capacity
Article No. 4003773- mm Head Handles Application mm² AWG g
97 71 180 040668 180 polished plastic coated Wire ferrules 0.25 – 16 24 – 6 205

97 72 180 060185 180 polished with multi-component grips Wire ferrules 0.25 – 16 24 – 6 242

97 78 180 072003 180 polished insulated with multi-component grips, VDE-tested Wire ferrules 0.25 – 16 24 – 6 254

insulated with multi-component grips with integrated
97 78 180 T 081531 180 polished Wire ferrules 0.25 – 16 24 – 6 260
insulated tether attachment point, VDE tested

Crimping Pliers for wire ferrules

with front loading
> For crimping wire ferrules according to DIN 46228 parts 1 + 4 in the
range 0.5 to 6 mm²
> Ideal for work in confined areas, e.g. in narrow and deep switch boxes 97 81 180
> Special tool steel, forged, oil-hardened

EAN Capacity
Article No. 4003773- mm Head Handles Application mm² AWG g
97 81 180 019794 180 polished plastic coated Wire ferrules 0.5 – 6 20 – 10 209

* Other tools with tethering can be found from page 294 CRIMPING PLIERS AND CRIMP ASSORTMENTS I 183
