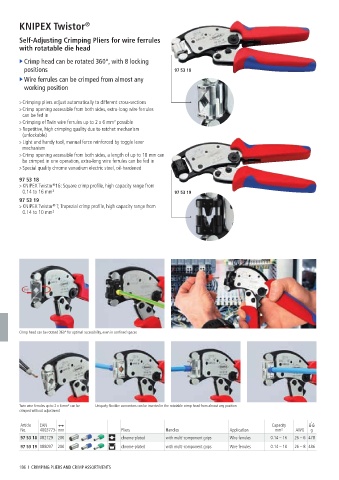

KNIPEX Twistor

Self-Adjusting Crimping Pliers for wire ferrules
with rotatable die head

► Crimp head can be rotated 360°, with 8 locking
positions 97 53 18
► Wire ferrules can be crimped from almost any
working position

> Crimping pliers adjust automatically to different cross-sections
> Crimp opening accessible from both sides, extra-long wire ferrules
can be fed in
> Crimping of Twin wire ferrules up to 2 x 6 mm² possible
> Repetitive, high crimping quality due to ratchet mechanism
(unlockable)
> Light and handy tool, manual force reinforced by toggle lever
mechanism
> Crimp opening accessible from both sides, a length of up to 18 mm can
be crimped in one operation, extra-long wire ferrules can be fed in
> Special quality chrome vanadium electric steel, oil-hardened

97 53 18
> KNIPEX Twistor 16: Square crimp profile, high capacity range from
®
0.14 to 16 mm² 97 53 19
97 53 19
> KNIPEX Twistor T; Trapezial crimp profile, high capacity range from
®
0.14 to 10 mm²

Crimp head can be rotated 360° for optimal accessibility, even in confined spaces

Twin wire ferrules up to 2 x 6 mm² can be Uniquely flexible: connectors can be inserted in the rotatable crimp head from almost any position
crimped without adjustment

Article EAN Capacity
No. 4003773- mm Pliers Handles Application mm² AWG g
97 53 18 082729 200 chrome-plated with multi-component grips Wire ferrules 0.14 – 16 26 – 6 478

97 53 19 088097 200 chrome-plated with multi-component grips Wire ferrules 0.14 – 10 26 – 8 486

186 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
