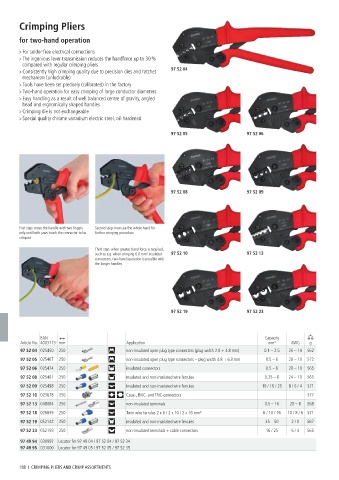

Page 188 - 凯尼派克英文通用样本2024knipex

Crimping Pliers

for two-hand operation

> For solder-free electrical connections
> The ingenious lever transmission reduces the handforce up to 30 %
compared with regular crimping pliers
> Consistently high crimping quality due to precision dies and ratchet 97 52 04
mechanism (unlockable)
> Tools have been set precisely (calibrated) in the factory
> Two-hand operation for easy crimping of large conductor diameters
> Easy handling as a result of well balanced centre of gravity, angled
head and ergnomically shaped handles
> Crimping die is not exchangeable
> Special quality chrome vanadium electric steel, oil-hardened

97 52 05 97 52 06

97 52 08 97 52 09

First step: move the handle with two fingers Second step: now use the whole hand for
only until both jaws touch the connector to be further crimping procedure
crimped
Third step: when greater hand force is required,
such as e.g. when crimping 6.0 mm² insulated 97 52 10 97 52 13
connectors, two-hand operation is possible with
the longer handles

97 52 19 97 52 23

EAN Capacity
Article No. 4003773- mm Application mm² AWG g
97 52 04 025450 250 non-insulated open plug type connectors (plug width 2.8 + 4.8 mm) 0.1 – 2.5 26 – 14 562

97 52 05 025467 250 non-insulated open plug type connectors – plug width 4.8 + 6.3 mm 0.5 – 6 20 – 10 572

97 52 06 025474 250 insulated connectors 0.5 – 6 20 – 10 565

97 52 08 025481 250 insulated and non-insulated wire ferrules 0.25 – 6 24 – 10 565

97 52 09 025498 250 insulated and non-insulated wire ferrules 10 / 16 / 25 8 / 6 / 4 571
97 52 10 023678 250 Coax-, BNC- and TNC-connectors 577

97 52 13 048084 250 non-insulated terminals 0.5 – 10 20 – 8 558

97 52 18 026839 250 Twin wire ferrules 2 x 6 / 2 x 10 / 2 x 16 mm² 6 / 10 / 16 10 / 8 / 6 571

97 52 19 052142 250 insulated and non-insulated wire ferrules 35 – 50 2 / 0 567

97 52 23 052159 250 non-insulated terminals + cable connectors 16 / 25 6 / 4 565
97 49 94 030997 Locator for 97 49 04 / 97 52 04 / 97 52 34
97 49 95 031000 Locator for 97 49 05 / 97 52 05 / 97 52 35

188 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
