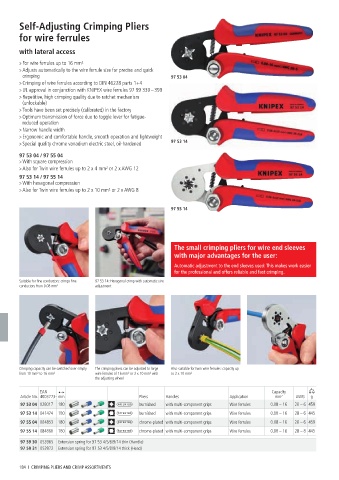

Page 184 - 凯尼派克英文通用样本2024knipex

Self-Adjusting Crimping Pliers

for wire ferrules

with lateral access
> For wire ferrules up to 16 mm²
> Adjusts automatically to the wire ferrule size for precise and quick
crimping 97 53 04
> Crimping of wire ferrules according to DIN 46228 parts 1+4
> UL approval in conjunction with KNIPEX wire ferrules 97 99 330 – 399
> Repetitive, high crimping quality due to ratchet mechanism
(unlockable)
> Tools have been set precisely (calibrated) in the factory
> Optimum transmission of force due to toggle lever for fatigue-
reduced operation
> Narrow handle width
> Ergonomic and comfortable handle, smooth operation and lightweight
> Special quality chrome vanadium electric steel, oil-hardened 97 53 14
97 53 04 / 97 55 04
> With square compression
> Also for Twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12
97 53 14 / 97 55 14
> With hexagonal compression
> Also for Twin wire ferrules up to 2 x 10 mm² or 2 x AWG 8

97 55 14

The small crimping pliers for wire end sleeves
with major advantages for the user:

Automatic adjustment to the end sleeves used: This makes work easier
for the professional and offers reliable and fast crimping.
Suitable for fine conductors: crimps fine 97 53 14: Hexagonal crimp with automatic size
conductors from 0.08 mm² adjustment

Crimping capacity can be switched over simply The crimping pliers can be adjusted to large Also suitable for twin wire ferrules: capacity up
from 10 mm² to 16 mm² wire ferrules of 16 mm² or 2 x 10 mm² with to 2 x 10 mm²
the adjusting wheel

EAN Capacity
Article No. 4003773- mm Pliers Handles Application mm² AWG g
97 53 04 028017 180 burnished with multi-component grips Wire ferrules 0.08 – 16 28 – 6 459
97 53 14 041474 180 burnished with multi-component grips Wire ferrules 0.08 – 16 28 – 6 445

97 55 04 084853 180 chrome-plated with multi-component grips Wire ferrules 0.08 – 16 28 – 6 459

97 55 14 084860 180 chrome-plated with multi-component grips Wire ferrules 0.08 – 16 28 – 8 445
97 59 30 053965 Extension spring for 97 53 4/5/8/9/14 thin (Handle)
97 59 31 053972 Extension spring for 97 53 4/5/8/9/14 thick (Head)

184 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
