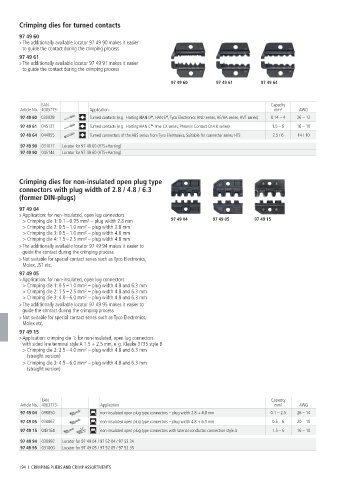

Page 194 - 凯尼派克英文通用样本2024knipex

Crimping dies for turned contacts

97 49 60
> The additionally available locator 97 49 90 makes it easier
to guide the contact during the crimping process
97 49 61
> The additionally available locator 97 49 91 makes it easier
to guide the contact during the crimping process

97 49 60 97 49 61 97 49 64

EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 60 030928 Turned contacts (e.g. Harting HAN D , HAN E , Tyco Electronics HND series, HE/HA series, HVT series) 0.14 – 4 26 – 12
®
®
97 49 61 045137 Turned contacts (e.g. Harting HAN C Ilme CX series, Phoenix Contact CK4.0 series) 1.5 – 6 16 – 10
®,

97 49 64 044055 Turned connectors of the ABS serios from Tyco Electronics. Suitable for connector series HTS 2.5 / 6 14 / 10

97 49 90 031017 Locator for 97 49 60 (HTS+Harting)
97 49 90 045144 Locator for 97 49 60 (HTS+Harting)

Crimping dies for non-insulated open plug type
connectors with plug width of 2.8 / 4.8 / 6.3
(former DIN-plugs)

97 49 04
> Application: for non-insulated, open lug connectors
> Crimping die 1: 0.1 – 0.25 mm² – plug width 2.8 mm 97 49 04 97 49 05 97 49 15
> Crimping die 2: 0.5 – 1.0 mm² – plug width 2.8 mm
> Crimping die 3: 0.5 – 1.0 mm² – plug width 4.8 mm
> Crimping die 4: 1.5 – 2.5 mm² – plug width 4.8 mm
> The additionally available locator 97 49 94 makes it easier to
guide the contact during the crimping process
> Not suitable for special contact series such as Tyco Electronics,
Molex, JST etc.
97 49 05
> Application: for non-insulated, open lug connectors
> Crimping die 1: 0.5 – 1.0 mm² – plug width 4.8 and 6.3 mm
> Crimping die 2: 1.5 – 2.5 mm² – plug width 4.8 and 6.3 mm
> Crimping die 3: 4.0 – 6.0 mm² – plug width 4.8 and 6.3 mm
> The additionally available locator 97 49 95 makes it easier to
guide the contact during the crimping process
> Not suitable for special contact series such as Tyco Electronics,
Molex etc.
97 49 15
> Application: crimping die 1: for non-insulated, open lug connectors
with sided line terminal style A 1.5 + 2.5 mm, e. g. Klauke 3735 style B
> Crimping die 2: 2.5 – 4.0 mm² – plug width 4.8 and 6.3 mm
(straight version)
> Crimping die 3: 4.5 – 6.0 mm² – plug width 4.8 and 6.3 mm
(straight version)

EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 04 030850 non-insulated open plug type connectors – plug width 2.8 + 4.8 mm 0.1 – 2.5 26 – 14

97 49 05 030867 non-insulated open plug type connectors – plug width 4.8 + 6.3 mm 0.5 – 6 20 – 10

97 49 15 043164 non-insulated open plug type connectors with laterial conductor connection style A 1.5 – 6 16 – 10
97 49 94 030997 Locator for 97 49 04 / 97 52 04 / 97 52 34
97 49 95 031000 Locator for 97 49 05 / 97 52 05 / 97 52 35

194 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
