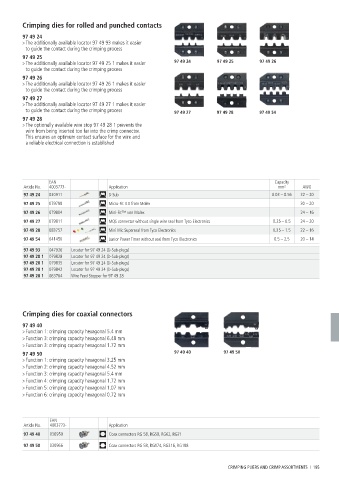

Crimping dies for rolled and punched contacts
97 49 24
> The additionally available locator 97 49 93 makes it easier
to guide the contact during the crimping process
97 49 25
> The additionally available locator 97 49 25 1 makes it easier 97 49 24 97 49 25 97 49 26
to guide the contact during the crimping process
97 49 26
> The additionally available locator 97 49 26 1 makes it easier
to guide the contact during the crimping process
97 49 27
> The additionally available locator 97 49 27 1 makes it easier
to guide the contact during the crimping process 97 49 27 97 49 28 97 49 54
97 49 28
> The optionally available wire stop 97 49 28 1 prevents the
wire from being inserted too far into the crimp connector.
This ensures an optimum contact surface for the wire and
a reliable electrical connection is established

EAN Capacity
Article No. 4003773- Application mm² AWG
97 49 24 030911 D Sub 0.03 – 0.56 32 – 20

97 49 25 079798 Micro-Fit 3.0 from Molex 30 – 20
97 49 26 079804 Mini-Fit™ von Molex 24 – 16

97 49 27 079811 MQS connector without single wire seal from Tyco Electronics 0.25 – 0.5 24 – 20

97 49 28 083757 Mini Mic Superseal from Tyco Electronics 0.35 – 1.5 22 – 16

97 49 54 041450 Junior Power Timer without seal from Tyco Electronics 0.5 – 2.5 20 – 14

97 49 93 047926 Locator for 97 49 24 (D-Sub-plugs)
97 49 28 1 079828 Locator for 97 49 24 (D-Sub-plugs)
97 49 28 1 079835 Locator for 97 49 24 (D-Sub-plugs)
97 49 28 1 079842 Locator for 97 49 24 (D-Sub-plugs)
97 49 28 1 083764 Wire Feed Stopper for 97 49 28

Crimping dies for coaxial connectors

97 49 40
> Function 1: crimping capacity hexagonal 5.4 mm
> Function 3: crimping capacity hexagonal 6.48 mm
> Function 3: crimping capacity hexagonal 1.72 mm
97 49 50 97 49 40 97 49 50
> Function 1: crimping capacity hexagonal 3.25 mm
> Function 2: crimping capacity hexagonal 4.52 mm
> Function 3: crimping capacity hexagonal 5.4 mm
> Function 4: crimping capacity hexagonal 1.72 mm
> Function 5: crimping capacity hexagonal 1.07 mm
> Function 6: crimping capacity hexagonal 0.72 mm

EAN
Article No. 4003773- Application
97 49 40 030959 Coax connectors RG 58, RG59, RG62, RG71

97 49 50 030966 Coax connectors RG 58, RG174, RG316, RG188

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 195
