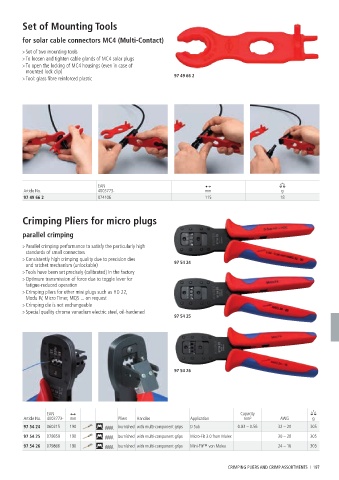

Page 197 - 凯尼派克英文通用样本2024knipex

Set of Mounting Tools

for solar cable connectors MC4 (Multi-Contact)

> Set of two mounting tools
> To loosen and tighten cable glands of MC4 solar plugs
> To open the locking of MC4 housings (even in case of
mounted lock clip)
> Tool: glass fibre reinforced plastic 97 49 66 2

EAN
Article No. 4003773- mm g
97 49 66 2 074106 115 18

Crimping Pliers for micro plugs

parallel crimping
> Parallel crimping performance to satisfy the particularly high
standards of small connectors
> Consistently high crimping quality due to precision dies
and ratchet mechanism (unlockable) 97 54 24
> Tools have been set precisely (calibrated) in the factory
> Optimum transmission of force due to toggle lever for
fatigue-reduced operation
> Crimping pliers for other mini plugs such as HD 22,
Modu IV, Micro Timer, MQS ... on request
> Crimping die is not exchangeable
> Special quality chrome vanadium electric steel, oil-hardened
97 54 25

97 54 26

EAN Capacity
Article No. 4003773- mm Pliers Handles Application mm² AWG g
97 54 24 060215 190 burnished with multi-component grips D Sub 0.03 – 0.56 32 – 20 305

97 54 25 079859 190 burnished with multi-component grips Micro-Fit 3.0 from Molex 30 – 20 305

97 54 26 079866 190 burnished with multi-component grips Mini-Fit™ von Molex 24 – 16 305

CRIMP ASSOR
TMENTS
PLIERS AND
CRIMPING PLIERS AND CRIMP ASSORTMENTS I 197
CRIMPING
