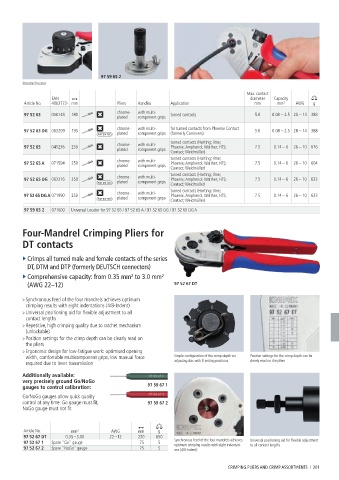

Page 201 - 凯尼派克英文通用样本2024knipex

97 59 65 2
Standard locator
Max. contact
EAN diameter Capacity
Article No. 4003773- mm Pliers Handles Application mm mm² AWG g
chrome- with multi-
97 52 63 050148 180 plated component grips turned contacts 5.0 0.08 – 2.5 28 – 14 388

97 52 63 DG 063209 195 chrome- with multi- for turned contacts from Phoenix Contact 5.0 0.08 – 2.5 28 – 14 388
plated component grips (formerly Coninvers)
turned contacts (Harting; Ilme;
chrome- with multi-
97 52 65 045236 230 Phoenix; Amphenol; Walther; HTS; 7.5 0.14 – 6 26 – 10 676
plated component grips
Contact; Weidmüller)
turned contacts (Harting; Ilme;
chrome- with multi-
97 52 65 A 071594 250 Phoenix; Amphenol; Walther; HTS; 7.5 0.14 – 6 26 – 10 604
component grips
plated
Contact; Weidmüller)
Phoenix; Amphenol; Walther; HTS;
97 52 65 DG 063216 250 chrome- with multi- turned contacts (Harting; Ilme; 7.5 0.14 – 6 26 – 10 633
plated component grips Contact; Weidmüller)
turned contacts (Harting; Ilme;
97 52 65 DG A 071990 250 chrome- with multi- Phoenix; Amphenol; Walther; HTS; 7.5 0.14 – 6 26 – 10 633
plated component grips Contact; Weidmüller)
97 59 65 2 071600 Universal Locator for 97 52 65 / 97 52 65 A / 97 52 65 DG / 97 52 65 DG A
Four-Mandrel Crimping Pliers for

DT contacts

► Crimps all turned male and female contacts of the series
DT, DTM and DTP (formerly DEUTSCH connectors)
► Comprehensive capacity: from 0.35 mm² to 3.0 mm²
(AWG 22–12) 97 52 67 DT

> Synchronous feed of the four mandrels achieves optimum
crimping results with eight indentations (4/8-Indent)
> Universal positioning aid for flexible adjustment to all
contact lengths
> Repetitive, high crimping quality due to ratchet mechanism
(unlockable)
> Position settings for the crimp depth can be clearly read on
the pliers
> Ergonomic design for low-fatigue work: optimised opening
width, comfortable multicomponent grips, low manual force Simple configuration of the crimp depth via Position settings for the crimp depth can be
required due to lever transmission adjusting disc with 8 setting positions clearly read on the pliers

Additionally available:
very precisely ground Go/NoGo
gauges to control calibration: 97 59 67 1
Go/NoGo gauges allow quick quality
control at any time: Go gauge must fit, 97 59 67 2
NoGo gauge must not fit

Article No. mm 2 AWG mm g
97 52 67 DT 0.35 – 3.00 22 – 12 230 650
97 52 67 1 Spare "Go" gauge 75 5 Synchronous feed of the four mandrels achieves Universal positioning aid for flexible adjustment
to all contact lengths
optimum crimping results with eight indentati-
97 52 67 2 Spare "NoGo" gauge 75 5 ons (4/8-Indent)

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 201
