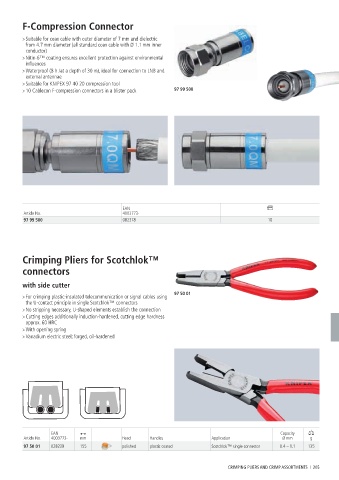

Page 205 - 凯尼派克英文通用样本2024knipex

F-Compression Connector
> Suitable for coax cable with outer diameter of 7 mm and dielectric
from 4.7 mm diameter (all standard coax cable with Ø 1.1 mm inner
conductor)
> Nitin-6™ coating ensures excellent protection against environmental
influences
> Waterproof (8 h /at a depth of 30 m), ideal for connection to LNB and
external antennae
> Suitable for KNIPEX 97 40 20 compression tool
> 10 Cablecon F-compression connectors in a blister pack 97 99 500

EAN
Article No. 4003773-
97 99 500 082378 10

Crimping Pliers for Scotchlok™

connectors

with side cutter
97 50 01
> For crimping plastic-insulated telecommunication or signal cables using
the U-contact principle in single Scotchlok™ connectors
> No stripping necessary, U-shaped elements establish the connection
> Cutting edges additionally induction-hardened, cutting edge hardness
approx. 60 HRC
> With opening spring
> Vanadium electric steel; forged, oil-hardened

EAN Capacity
Article No. 4003773- mm Head Handles Application Ø mm g
97 50 01 028239 155 polished plastic coated Scotchlok™ single connector 0.4 – 1.1 135

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 205
