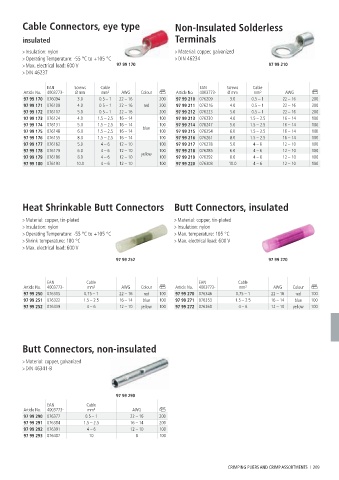

Page 209 - 凯尼派克英文通用样本2024knipex

Cable Connectors, eye type Non-Insulated Solderless

insulated Terminals

> Insulation: nylon > Material: copper, galvanized
> Operating Temperature: -55 °C to +105 °C > DIN 46234
> Max. electrical load: 600 V 97 99 170 97 99 210
> DIN 46237

EAN Screws Cable EAN Screws Cable
Article No. 4003773- Ø mm mm² AWG Colour Article No. 4003773- Ø mm mm² AWG
97 99 170 076094 3.0 0.5 – 1 22 – 16 200 97 99 210 076209 3.0 0.5 – 1 22 – 16 200
97 99 171 076100 4.0 0.5 – 1 22 – 16 red 200 97 99 211 076216 4.0 0.5 – 1 22 – 16 200
97 99 172 076117 5.0 0.5 – 1 22 – 16 200 97 99 212 076223 5.0 0.5 – 1 22 – 16 200
97 99 173 076124 4.0 1.5 – 2.5 16 – 14 100 97 99 213 076230 4.0 1.5 – 2.5 16 – 14 100
97 99 174 076131 5.0 1.5 – 2.5 16 – 14 100 97 99 214 076247 5.0 1.5 – 2.5 16 – 14 100
97 99 175 076148 6.0 1.5 – 2.5 16 – 14 blue 100 97 99 215 076254 6.0 1.5 – 2.5 16 – 14 100
97 99 176 076155 8.0 1.5 – 2.5 16 – 14 100 97 99 216 076261 8.0 1.5 – 2.5 16 – 14 100
97 99 177 076162 5.0 4 – 6 12 – 10 100 97 99 217 076278 5.0 4 – 6 12 – 10 100
97 99 178 076179 6.0 4 – 6 12 – 10 yellow 100 97 99 218 076285 6.0 4 – 6 12 – 10 100
97 99 179 076186 8.0 4 – 6 12 – 10 100 97 99 219 076292 8.0 4 – 6 12 – 10 100
97 99 180 076193 10.0 4 – 6 12 – 10 100 97 99 220 076308 10.0 4 – 6 12 – 10 100

Heat Shrinkable Butt Connectors Butt Connectors, insulated

> Material: copper, tin-plated > Material: copper, tin-plated
> Insulation: nylon > Insulation: nylon
> Operating Temperature: -55 °C to +105 °C > Max. temperature: 105 °C
> Shrink temperature: 180 °C > Max. electrical load: 600 V
> Max. electrical load: 600 V
97 99 252 97 99 270

EAN Cable EAN Cable
Article No. 4003773- mm² AWG Colour Article No. 4003773- mm² AWG Colour
97 99 250 076315 0.75 – 1 22 – 16 red 100 97 99 270 076346 0.75 – 1 22 – 16 red 100
97 99 251 076322 1.5 – 2.5 16 – 14 blue 100 97 99 271 076353 1.5 – 2.5 16 – 14 blue 100
97 99 252 076339 4 – 6 12 – 10 yellow 100 97 99 272 076360 4 – 6 12 – 10 yellow 100

Butt Connectors, non-insulated
> Material: copper, galvanized
> DIN 46341-B

97 99 290
EAN Cable
Article No. 4003773- mm² AWG
97 99 290 076377 0.5 – 1 22 – 16 200
97 99 291 076384 1.5 – 2.5 16 – 14 200
97 99 292 076391 4 – 6 12 – 10 100
97 99 293 076407 10 8 100

CRIMPING PLIERS AND CRIMP ASSORTMENTS I 209
