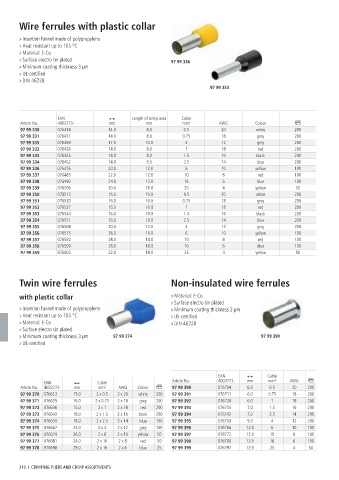

Page 210 - 凯尼派克英文通用样本2024knipex

Wire ferrules with plastic collar
> Insertion funnel made of polypropylene
> Heat resistant up to 105 °C
> Material: E-Cu
> Surface electro tin plated 97 99 336
> Minimum coating thickness 3 µm
> UL-certified
> DIN 46228
97 99 353

EAN Length of crimp area Cable
Article No. 4003773- mm mm mm² AWG Colour
97 99 330 076414 14.0 8.0 0.5 20 white 200
97 99 331 076421 14.0 8.0 0.75 18 grey 200
97 99 335 076469 17.0 10.0 4 12 grey 200
97 99 332 076438 14.0 8.0 1 18 red 200
97 99 333 076445 14.0 8.0 1.5 16 black 200
97 99 334 076452 14.0 8.0 2.5 14 blue 200
97 99 336 076476 20.0 12.0 6 10 yellow 100
97 99 337 076483 22.0 12.0 10 8 red 100
97 99 338 076490 24.0 12.0 16 6 blue 100
97 99 339 076506 30.0 16.0 25 4 yellow 50
97 99 350 076513 16.0 10.0 0.5 20 white 200
97 99 351 076520 16.0 10.0 0.75 18 grey 200
97 99 352 076537 16.0 10.0 1 18 red 200
97 99 353 076544 16.0 10.0 1.5 16 black 200
97 99 354 076551 16.0 10.0 2.5 14 blue 200
97 99 355 076568 20.0 12.0 4 12 grey 200
97 99 356 076575 26.0 18.0 6 10 yellow 100
97 99 357 076582 28.0 18.0 10 8 red 100
97 99 358 076599 28.0 18.0 16 6 blue 100
97 99 359 076605 32.0 18.0 25 4 yellow 50

Twin wire ferrules Non-insulated wire ferrules

with plastic collar > Material: E-Cu
> Surface electro tin plated
> Insertion funnel made of polypropylene > Minimum coating thickness 3 µm
> Heat resistant up to 105 °C > UL-certified
> Material: E-Cu > DIN 46228
> Surface electro tin plated
> Minimum coating thickness 3 µm 97 99 374 97 99 390
> UL-certified

EAN Cable
EAN Cable Article No. 4003773- mm mm² AWG
Article No. 4003773- mm mm² AWG Colour 97 99 390 076704 6.0 0.5 20 200
97 99 370 076612 15.0 2 x 0.5 2 x 20 white 200 97 99 391 076711 6.0 0.75 18 200
97 99 371 076629 16.0 2 x 0.75 2 x 18 grey 200 97 99 392 076728 6.0 1 18 200
97 99 372 076636 15.0 2 x 1 2 x 18 red 200 97 99 393 076735 7.0 1.5 16 200
97 99 373 076643 18.0 2 x 1.5 2 x 16 black 200 97 99 394 076742 7.0 2.5 14 200
97 99 374 076650 18.0 2 x 2.5 2 x 14 blue 100 97 99 395 076759 9.0 4 12 200
97 99 375 076667 23.0 2 x 4 2 x 12 grey 100 97 99 396 076766 12.0 6 10 100
97 99 376 076674 26.0 2 x 6 2 x 10 yellow 50 97 99 397 076773 12.0 10 8 100
97 99 377 076681 24.0 2 x 10 2 x 8 red 50 97 99 398 076780 12.0 16 6 100
97 99 378 076698 29.0 2 x 16 2 x 6 blue 25 97 99 399 076797 12.0 25 4 50

210 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
