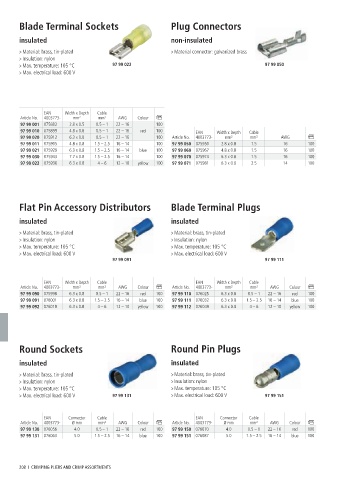

Page 208 - 凯尼派克英文通用样本2024knipex

Blade Terminal Sockets Plug Connectors

insulated non-insulated

> Material: brass, tin-plated > Material connector: galvanized brass
> Insulation: nylon
> Max. temperature: 105 °C 97 99 022 97 99 050
> Max. electrical load: 600 V

EAN Width x Depth Cable
Article No. 4003773- mm² mm² AWG Colour
97 99 001 075882 2.8 x 0.5 0.5 – 1 22 – 16 100
97 99 010 075899 4.8 x 0.8 0.5 – 1 22 – 16 red 100 EAN Width x Depth Cable
97 99 020 075912 6.3 x 0.8 0.5 – 1 22 – 16 100 Article No. 4003773- mm² mm² AWG
97 99 011 075905 4.8 x 0.8 1.5 – 2.5 16 – 14 100 97 99 050 075950 2.8 x 0.8 1.5 16 100
97 99 021 075929 6.3 x 0.8 1.5 – 2.5 16 – 14 blue 100 97 99 060 075967 4.8 x 0.8 1.5 16 100
97 99 030 075943 7.7 x 0.8 1.5 – 2.5 16 – 14 100 97 99 070 075974 6.3 x 0.8 1.5 16 100
97 99 022 075936 6.3 x 0.8 4 – 6 12 – 10 yellow 100 97 99 071 075981 6.3 x 0.8 2.5 14 100

Flat Pin Accessory Distributors Blade Terminal Plugs

insulated insulated
> Material: brass, tin-plated > Material: brass, tin-plated
> Insulation: nylon > Insulation: nylon
> Max. temperature: 105 °C > Max. temperature: 105 °C
> Max. electrical load: 600 V > Max. electrical load: 600 V
97 99 091 97 99 111

EAN Width x Depth Cable EAN Width x Depth Cable
Article No. 4003773- mm² mm² AWG Colour Article No. 4003773- mm² mm² AWG Colour
97 99 090 075998 6.3 x 0.8 0.5 – 1 22 – 16 red 100 97 99 110 076025 6.3 x 0.8 0.5 – 1 22 – 16 red 100
97 99 091 076001 6.3 x 0.8 1.5 – 2.5 16 – 14 blue 100 97 99 111 076032 6.3 x 0.8 1.5 – 2.5 16 – 14 blue 100
97 99 092 076018 6.3 x 0.8 4 – 6 12 – 10 yellow 100 97 99 112 076049 6.3 x 0.8 4 – 6 12 – 10 yellow 100

Round Sockets Round Pin Plugs

insulated insulated
> Material: brass, tin-plated > Material: brass, tin-plated
> Insulation: nylon > Insulation: nylon
> Max. temperature: 105 °C > Max. temperature: 105 °C
> Max. electrical load: 600 V 97 99 131 > Max. electrical load: 600 V 97 99 151

EAN Connector Cable EAN Connector Cable
Article No. 4003773- Ø mm mm² AWG Colour Article No. 4003773- Ø mm mm² AWG Colour
97 99 130 076056 4.0 0.5 – 1 22 – 16 red 100 97 99 150 076070 4.0 0.5 – 1 22 – 16 red 100
97 99 131 076063 5.0 1.5 – 2.5 16 – 14 blue 100 97 99 151 076087 5.0 1.5 – 2.5 16 – 14 blue 100

208 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
