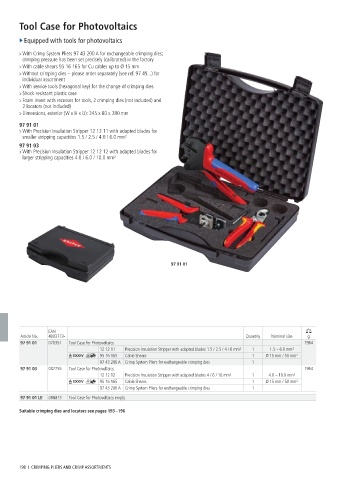

Tool Case for Photovoltaics

► Equipped with tools for photovoltaics

> With Crimp System Pliers 97 43 200 A for exchangeable crimping dies;
crimping pressure has been set precisely (calibrated) in the factory
> With cable shears 95 16 165 for Cu cables up to Ø 15 mm
> Without crimping dies – please order separately (see ref. 97 49...) for
individual assortment
> With service tools (hexagonal key) for the change of crimping dies
> Shock-resistant plastic case
> Foam insert with recesses for tools, 2 crimping dies (not included) and
2 locators (not included)
> Dimensions, exterior (W x H x D): 345 x 80 x 280 mm

97 91 01
> With Precision Insulation Stripper 12 12 11 with adapted blades for
smaller stripping capacities 1.5 / 2.5 / 4.0 / 6.0 mm²
97 91 03
> With Precision Insulation Stripper 12 12 12 with adapted blades for
larger stripping capacities 4.0 / 6.0 / 10.0 mm²

97 91 01

EAN
Article No. 4003773- Quantity Nominal size g
97 91 01 070351 Tool Case for Photovoltaics 1964
12 12 11 Precision Insulation Stripper with adapted blades 1.5 / 2.5 / 4 / 6 mm² 1 1.5 – 6.0 mm²
95 16 165 Cable Shears 1 Ø 15 mm / 50 mm²
97 43 200 A Crimp System Pliers for exchangeable crimping dies 1
97 91 03 087755 Tool Case for Photovoltaics 1964
12 12 12 Precision Insulation Stripper with adapted blades 4 / 6 / 10 mm² 1 4.0 – 10.0 mm²
95 16 165 Cable Shears 1 Ø 15 mm / 50 mm²
97 43 200 A Crimp System Pliers for exchangeable crimping dies 1
97 91 01 LE 088813 Tool Case for Photovoltaics empty

Suitable crimping dies and locators see pages 193 –196

198 I CRIMPING PLIERS AND CRIMP ASSORTMENTS
