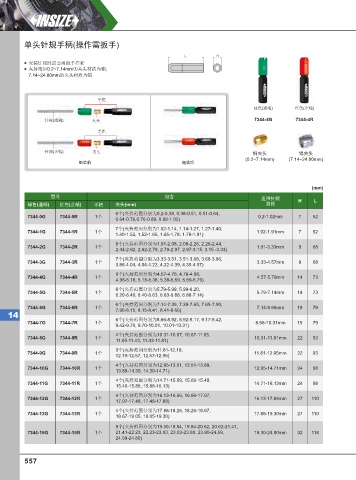

Page 566 - 英示测量INSIZE2025-v.66

单头针规手柄(操作需扳手)

L H
安装针规时需要用扳手拧紧
夹持范围0.2~7.14mm的夹头材质为铜,
7.14~24.80mm的夹头材质为铝

手把
绿色(通端) 红色(止端)

针规(通端) 夹头 7344-4G 7344-4R
手把

针规(止端) 夹头 铜夹头 铝夹头
(0.2~7.14mm) (7.14~24.80mm)
组装前 组装后

(mm)
型号 包含 适用针规
绿色(通端) 红色(止端) 手把 夹头(mm) 直径 H L
6个(夹持范围分别为0.2-0.38, 0.38-0.51, 0.51-0.64,
7344-0G 7344-0R 1个 0.2-1.02mm 7 52
0.64-0.76,0.76-0.89, 0.89-1.02)
7个(夹持范围分别为1.02-1.14, 1.14-1.27, 1.27-1.40,
7344-1G 7344-1R 1个 1.02-1.91mm 7 52
1.40-1.52, 1.52-1.65, 1.65-1.78, 1.78-1.91)
8个(夹持范围分别为1.91-2.08, 2.08-2.26, 2.26-2.44,
7344-2G 7344-2R 1个 1.91-3.33mm 9 68
2.44-2.62, 2.62-2.79, 2.79-2.97, 2.97-3.15, 3.15 -3.33)
7个(夹持范围分别为3.33-3.51, 3.51-3.68, 3.68-3.86,
7344-3G 7344-3R 1个 3.33-4.57mm 9 68
3.86-4.04, 4.04-4.22, 4.22-4.39, 4.39-4.57)
6个(夹持范围分别为4.57-4.78, 4.78-4.98,
7344-4G 7344-4R 1个 4.57-5.79mm 14 73
4.98-5.18, 5.18-5.38, 5.38-5.59, 5.59-5.79)
6个(夹持范围分别为5.79-5.99, 5.99-6.20,
7344-5G 7344-5R 1个 5.79-7.14mm 14 73
6.20-6.40, 6.40-6.63, 6.63-6.88, 6.88-7.14)
6个(夹持范围分别为7.14-7.39, 7.39-7.65, 7.65-7.90,
7344-6G 7344-6R 1个 7.14-8.66mm 19 79
7.90-8.15, 8.15-8.41, 8.41-8.66)
14
7344-7G 7344-7R 1个 6个(夹持范围分别为8.66-8.92, 8.92-9.17, 9.17-9.42, 8.66-10.31mm 19 79
9.42-9.70, 9.70-10.01, 10.01-10.31)
4个(夹持范围分别为10.31-10.67, 10.67-11.05,
7344-8G 7344-8R 1个 10.31-11.81mm 22 93
11.05-11.43, 11.43-11.81)
3个(夹持范围分别为11.81-12.19,
7344-9G 7344-9R 1个 11.81-12.95mm 22 93
12.19-12.57, 12.57-12.95)
4个(夹持范围分别为12.95-13.51, 13.51-13.89,
7344-10G 7344-10R 1个 12.95-14.71mm 24 98
13.89-14.30, 14.30-14.71)
4个(夹持范围分别为14.71-15.09, 15.09-15.49,
7344-11G 7344-11R 1个 14.71-16.13mm 24 98
15.49-15.88, 15.88-16.13)
4个(夹持范围分别为16.13-16.66, 16.66-17.07,
7344-12G 7344-12R 1个 16.13-17.88mm 27 110
17.07-17.48, 17.48-17.88)
4个(夹持范围分别为17.88-18.26, 18.26-18.67,
7344-13G 7344-13R 1个 17.88-19.30mm 27 110
18.67-19.05, 19.05-19.30)
8个(夹持范围分别为19.30-19.84, 19.84-20.62, 20.62-21.41,
7344-15G 7344-15R 1个 21.41-22.23, 22.23-23.03, 23.03-23.80, 23.80-24.59, 19.30-24.80mm 32 118
24.59-24.80)
