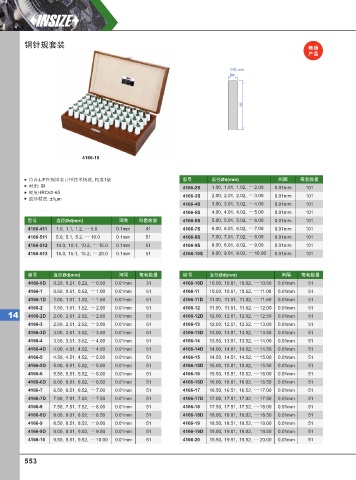

钢针规套装 畅销
产品

单位: mm
Ød

50

4166-10

符合JJF针规国家计量技术规范, 精度1级 型号 直径 Ød(mm) 间隔 每套数量
材质: 钢 4166-2S 1.00, 1.01, 1.02, ···· 2.00 0.01mm 101
硬度HRC62-65
4166-3S 2.00, 2.01, 2.02, ···· 3.00 0.01mm 101
直径精度: ±1μm
4166-4S 3.00, 3.01, 3.02, ···· 4.00 0.01mm 101
4166-5S 4.00, 4.01, 4.02, ···· 5.00 0.01mm 101
型号 直径 Ød(mm) 间隔 每套数量 4166-6S 5.00, 5.01, 5.02, ···· 6.00 0.01mm 101
4166-411 1.0, 1.1, 1.2, ···· 5.0 0.1mm 41 4166-7S 6.00, 6.01, 6.02, ···· 7.00 0.01mm 101
4166-511 5.0, 5.1, 5.2, ···· 10.0 0.1mm 51 4166-8S 7.00, 7.01, 7.02, ···· 8.00 0.01mm 101
4166-512 10.0, 10.1, 10.2, ···· 15.0 0.1mm 51 4166-9S 8.00, 8.01, 8.02, ···· 9.00 0.01mm 101
4166-513 15.0, 15.1, 15.2, ···· 20.0 0.1mm 51 4166-10S 9.00, 9.01, 9.02, ···· 10.00 0.01mm 101

型号 直径 Ød(mm) 间隔 每套数量 型号 直径 Ød(mm) 间隔 每套数量
4166-0D 0.20, 0.21, 0.22, ···· 0.50 0.01mm 31 4166-10D 10.00, 10.01, 10.02, ···· 10.50 0.01mm 51
4166-1 0.50, 0.51, 0.52, ···· 1.00 0.01mm 51 4166-11 10.50, 10.51, 10.52, ···· 11.00 0.01mm 51
4166-1D 1.00, 1.01, 1.02, ···· 1.50 0.01mm 51 4166-11D 11.00, 11.01, 11.02, ···· 11.50 0.01mm 51
4166-2 1.50, 1.51, 1.52, ···· 2.00 0.01mm 51 4166-12 11.50, 11.51, 11.52, ···· 12.00 0.01mm 51
14 4166-2D 2.00, 2.01, 2.02, ···· 2.50 0.01mm 51 4166-12D 12.00, 12.01, 12.02, ···· 12.50 0.01mm 51
4166-3 2.50, 2.51, 2.52, ···· 3.00 0.01mm 51 4166-13 12.50, 12.51, 12.52, ···· 13.00 0.01mm 51
4166-3D 3.00, 3.01, 3.02, ···· 3.50 0.01mm 51 4166-13D 13.00, 13.01, 13.02, ···· 13.50 0.01mm 51
4166-4 3.50, 3.51, 3.52, ···· 4.00 0.01mm 51 4166-14 13.50, 13.51, 13.52, ···· 14.00 0.01mm 51
4166-4D 4.00, 4.01, 4.02, ···· 4.50 0.01mm 51 4166-14D 14.00, 14.01, 14.02, ···· 14.50 0.01mm 51
4166-5 4.50, 4.51, 4.52, ···· 5.00 0.01mm 51 4166-15 14.50, 14.51, 14.52, ···· 15.00 0.01mm 51
4166-5D 5.00, 5.01, 5.02, ···· 5.50 0.01mm 51 4166-15D 15.00, 15.01, 15.02, ···· 15.50 0.01mm 51
4166-6 5.50, 5.51, 5.52, ···· 6.00 0.01mm 51 4166-16 15.50, 15.51, 15.52, ···· 16.00 0.01mm 51
4166-6D 6.00, 6.01, 6.02, ···· 6.50 0.01mm 51 4166-16D 16.00, 16.01, 16.02, ···· 16.50 0.01mm 51
4166-7 6.50, 6.51, 6.52, ···· 7.00 0.01mm 51 4166-17 16.50, 16.51, 16.52, ···· 17.00 0.01mm 51
4166-7D 7.00, 7.01, 7.02, ···· 7.50 0.01mm 51 4166-17D 17.00, 17.01, 17.02, ···· 17.50 0.01mm 51
4166-8 7.50, 7.51, 7.52, ···· 8.00 0.01mm 51 4166-18 17.50, 17.51, 17.52, ···· 18.00 0.01mm 51
4166-8D 8.00, 8.01, 8.02, ···· 8.50 0.01mm 51 4166-18D 18.00, 18.01, 18.02, ···· 18.50 0.01mm 51
4166-9 8.50, 8.51, 8.52, ···· 9.00 0.01mm 51 4166-19 18.50, 18.51, 18.52, ···· 19.00 0.01mm 51
4166-9D 9.00, 9.01, 9.02, ···· 9.50 0.01mm 51 4166-19D 19.00, 19.01, 19.02, ···· 19.50 0.01mm 51
4166-10 9.50, 9.51, 9.52, ···· 10.00 0.01mm 51 4166-20 19.50, 19.51, 19.52, ···· 20.00 0.01mm 51
