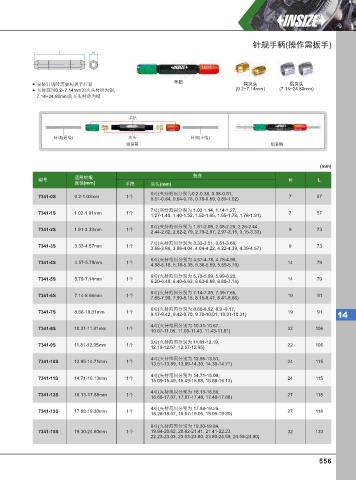

针规手柄(操作需扳手)
L H

手把
安装针规时需要用扳手拧紧 铜夹头 铝夹头
夹持范围0.2~7.14mm的夹头材质为铜, (0.2~7.14mm) (7.14~24.80mm)
7.14~24.80mm的夹头材质为铝

手把

针规(通端) 夹头 针规(止端)
组装前 组装后

(mm)

适用针规 包含
型号 H L
直径(mm) 手把 夹头(mm)
6对(夹持范围分别为0.2-0.38, 0.38-0.51,
7341-0S 0.2-1.02mm 1个 7 57
0.51-0.64, 0.64-0.76, 0.76-0.89, 0.89-1.02)
7对(夹持范围分别为 1.02-1.14, 1.14-1.27,
7341-1S 1.02-1.91mm 1个 7 57
1.27-1.40, 1.40-1.52, 1.52-1.65, 1.65-1.78, 1.78-1.91)
8对(夹持范围分别为 1.91-2.08, 2.08-2.26, 2.26-2.44,
7341-2S 1.91-3.33mm 1个 9 73
2.44-2.62, 2.62-2.79, 2.79-2.97, 2.97-3.15, 3.15-3.33)
7对(夹持范围分别为 3.33-3.51, 3.51-3.68,
7341-3S 3.33-4.57mm 1个 9 73
3.68-3.86, 3.86-4.04, 4.04-4.22, 4.22-4.39, 4.39-4.57)
6对(夹持范围分别为 4.57-4.78, 4.78-4.98,
7341-4S 4.57-5.79mm 1个 14 79
4.98-5.18, 5.18-5.38, 5.38-5.59, 5.59-5.79)
6对(夹持范围分别为 5.79-5.99, 5.99-6.20,
7341-5S 5.79-7.14mm 1个 14 79
6.20-6.40, 6.40-6.63, 6.63-6.88, 6.88-7.14)
6对(夹持范围分别为 7.14-7.39, 7.39-7.65,
7341-6S 7.14-8.66mm 1个 19 91
7.65-7.90, 7.90-8.15, 8.15-8.41, 8.41-8.66)
6对(夹持范围分别为 8.66-8.92, 8.9 -9.17,
7341-7S 8.66-10.31mm 1个 19 91
9.17-9.42, 9.42-9.70, 9.70-10.01, 10.01-10.31) 14
4对(夹持范围分别为 10.31-10.67,
7341-8S 10.31-11.81mm 1个 22 106
10.67-11.05, 11.05-11.43, 11.43-11.81)
3对(夹持范围分别为 11.81-12.19,
7341-9S 11.81-12.95mm 1个 22 106
12.19-12.57, 12.57-12.95)
4对(夹持范围分别为 12.95-13.51,
7341-10S 12.95-14.71mm 1个 24 115
13.51-13.89, 13.89-14.30, 14.30-14.71)
4对(夹持范围分别为 14.71-15.09,
7341-11S 14.71-16.13mm 1个 24 115
15.09-15.49, 15.49-15.88, 15.88-16.13)
4对(夹持范围分别为 16.13-16.66,
7341-12S 16.13-17.88mm 1个 27 118
16.66-17.07, 17.07-17.48, 17.48-17.88)
4对(夹持范围分别为 17.88-18.26,
7341-13S 17.88-19.30mm 1个 27 118
18.26-18.67, 18.67-19.05, 19.05-19.30)
8对(夹持范围分别为 19.30-19.84,
7341-15S 19.30-24.80mm 1个 19.84-20.62, 20.62-21.41, 21.41-22.23, 32 133
22.23-23.03, 23.03-23.80, 23.80-24.59, 24.59-24.80)
