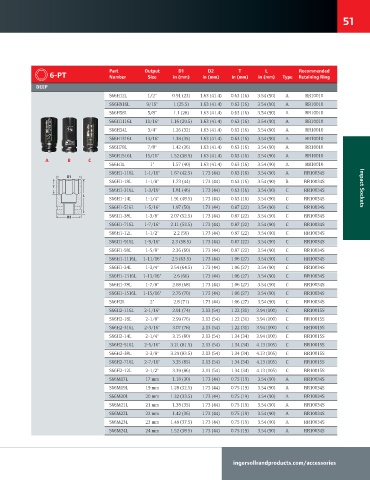

Page 51 - 英格索兰附件图册IngersollRand

51

Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring

DEEP
S66H12L 1/2" 0.91 (23) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H916L 9/16" 1 (25.5) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H58L 5/8" 1.1 (28) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H1116L 11/16" 1.16 (29.5) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H34L 3/4" 1.26 (32) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H1316L 13/16" 1.38 (35) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H78L 7/8" 1.42 (36) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H1516L 15/16" 1.52 (38.5) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
A B C
S66H1L 1" 1.57 (40) 1.63 (41.4) 0.63 (16) 3.54 (90) A RR10010
S66H1-116L 1-1/16" 1.67 (42.5) 1.73 (44) 0.63 (16) 3.54 (90) A RR10034S
D1
S66H1-18L 1-1/8" 1.73 (44) 1.73 (44) 0.63 (16) 3.54 (90) B RR10034S
T Impact Sockets
S66H1-316L 1-3/16" 1.81 (46) 1.73 (44) 0.63 (16) 3.54 (90) C RR10034S
L
S66H1-14L 1-1/4" 1.91 (48.5) 1.73 (44) 0.63 (16) 3.54 (90) C RR10034S
S66H1-516L 1-5/16" 1.97 (50) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
D2 S66H1-38L 1-3/8" 2.07 (52.5) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66H1-716L 1-7/16" 2.11 (53.5) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66H1-12L 1-1/2" 2.2 (56) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66H1-916L 1-9/16" 2.3 (58.5) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66H1-58L 1-5/8" 2.36 (60) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66H1-1116L 1-11/16" 2.5 (63.5) 1.73 (44) 1.06 (27) 3.54 (90) C RR10034S
S66H1-34L 1-3/4" 2.54 (64.5) 1.73 (44) 1.06 (27) 3.54 (90) C RR10034S
S66H1-1316L 1-13/16" 2.6 (66) 1.73 (44) 1.06 (27) 3.54 (90) C RR10034S
S66H1-78L 1-7/8" 2.68 (68) 1.73 (44) 1.06 (27) 3.54 (90) C RR10034S
S66H1-1516L 1-15/16" 2.76 (70) 1.73 (44) 1.06 (27) 3.54 (90) C RR10034S
S66H2L 2" 2.8 (71) 1.73 (44) 1.06 (27) 3.54 (90) C RR10034S
S66H2-116L 2-1/16" 2.91 (74) 2.13 (54) 1.22 (31) 3.94 (100) C RR10015S
S66H2-18L 2-1/8" 2.99 (76) 2.13 (54) 1.22 (31) 3.94 (100) C RR10015S
S66H2-316L 2-3/16" 3.07 (78) 2.13 (54) 1.22 (31) 3.94 (100) C RR10015S
S66H2-14L 2-1/4" 3.15 (80) 2.13 (54) 1.34 (34) 3.94 (100) C RR10015S
S66H2-516L 2-5/16" 3.21 (81.5) 2.13 (54) 1.34 (34) 4.13 (105) C RR10015S
S66H2-38L 2-3/8" 3.29 (83.5) 2.13 (54) 1.34 (34) 4.13 (105) C RR10015S
S66H2-716L 2-7/16" 3.35 (85) 2.13 (54) 1.34 (34) 4.13 (105) C RR10015S
S66H2-12L 2-1/2" 3.39 (86) 2.13 (54) 1.34 (34) 4.13 (105) C RR10015S
S66M17L 17 mm 1.18 (30) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M19L 19 mm 1.28 (32.5) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M20L 20 mm 1.32 (33.5) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M21L 21 mm 1.38 (35) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M22L 22 mm 1.42 (36) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M23L 23 mm 1.48 (37.5) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M24L 24 mm 1.52 (38.5) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S

ingersollrandproducts.com/accessories
