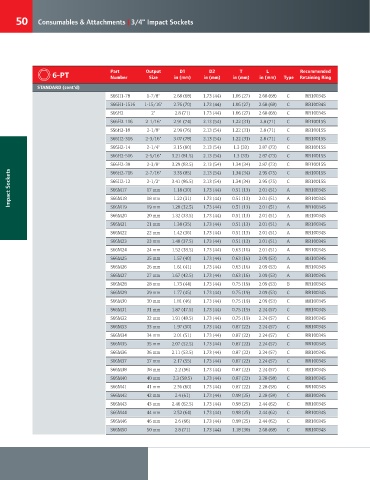

50 Consumables & Attachments | 3/4" Impact Sockets

Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring

STANDARD (cont'd)
S66H1-78 1-7/8" 2.68 (68) 1.73 (44) 1.06 (27) 2.68 (68) C RR10034S
S66H1-1516 1-15/16" 2.76 (70) 1.73 (44) 1.06 (27) 2.68 (68) C RR10034S
S66H2 2" 2.8 (71) 1.73 (44) 1.06 (27) 2.68 (68) C RR10034S
S66H2-116 2-1/16" 2.91 (74) 2.13 (54) 1.22 (31) 2.8 (71) C RR10015S
SS6H2-18 2-1/8" 2.99 (76) 2.13 (54) 1.22 (31) 2.8 (71) C RR10015S
S66H2-316 2-3/16" 3.07 (78) 2.13 (54) 1.22 (31) 2.8 (71) C RR10015S
S66H2-14 2-1/4" 3.15 (80) 2.13 (54) 1.3 (33) 2.87 (73) C RR10015S
S66H2-516 2-5/16" 3.21 (81.5) 2.13 (54) 1.3 (33) 2.87 (73) C RR10015S
2-3/8"
S66H2-38 2-7/16" 3.29 (83.5) 2.13 (54) 1.34 (34) 2.87 (73) C RR10015S
Impact Sockets S66H2-12 2-1/2" 3.41 (86.5) 2.13 (54) 1.34 (34) 2.95 (75) A RR10015S
1.34 (34)
3.35 (85)
2.95 (75)
C
RR10015S
2.13 (54)
S66H2-716
C
17 mm
2.01 (51)
0.51 (13)
RR10034S
1.18 (30)
1.73 (44)
S66M17
A
S66M18
RR10034S
1.73 (44)
18 mm
1.22 (31)
0.51 (13)
2.01 (51)
S66M19
1.32 (33.5)
2.01 (51)
20 mm
1.73 (44)
S66M20 19 mm 1.28 (32.5) 1.73 (44) 0.51 (13) 2.01 (51) A RR10034S
0.51 (13)
A
RR10034S
S66M21 21 mm 1.38 (35) 1.73 (44) 0.51 (13) 2.01 (51) A RR10034S
S66M22 22 mm 1.42 (36) 1.73 (44) 0.51 (13) 2.01 (51) A RR10034S
S66M23 23 mm 1.48 (37.5) 1.73 (44) 0.51 (13) 2.01 (51) A RR10034S
S66M24 24 mm 1.52 (38.5) 1.73 (44) 0.63 (16) 2.01 (51) A RR10034S
S66M25 25 mm 1.57 (40) 1.73 (44) 0.63 (16) 2.09 (53) A RR10034S
S66M26 26 mm 1.61 (41) 1.73 (44) 0.63 (16) 2.09 (53) A RR10034S
S66M27 27 mm 1.67 (42.5) 1.73 (44) 0.63 (16) 2.09 (53) A RR10034S
S66M28 28 mm 1.73 (44) 1.73 (44) 0.75 (19) 2.09 (53) B RR10034S
S66M29 29 mm 1.77 (45) 1.73 (44) 0.75 (19) 2.09 (53) C RR10034S
S66M30 30 mm 1.81 (46) 1.73 (44) 0.75 (19) 2.09 (53) C RR10034S
S66M31 31 mm 1.87 (47.5) 1.73 (44) 0.75 (19) 2.24 (57) C RR10034S
S66M32 32 mm 1.91 (48.5) 1.73 (44) 0.75 (19) 2.24 (57) C RR10034S
S66M33 33 mm 1.97 (50) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66M34 34 mm 2.01 (51) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66M35 35 mm 2.07 (52.5) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66M36 36 mm 2.11 (53.5) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66M37 37 mm 2.17 (55) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66M38 38 mm 2.2 (56) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66M40 40 mm 2.3 (58.5) 1.73 (44) 0.87 (22) 2.28 (58) C RR10034S
S66M41 41 mm 2.36 (60) 1.73 (44) 0.87 (22) 2.28 (58) C RR10034S
S66M42 42 mm 2.4 (61) 1.73 (44) 0.98 (25) 2.28 (58) C RR10034S
S66M43 43 mm 2.46 (62.5) 1.73 (44) 0.98 (25) 2.44 (62) C RR10034S
S66M44 44 mm 2.52 (64) 1.73 (44) 0.98 (25) 2.44 (62) C RR10034S
S66M46 46 mm 2.6 (66) 1.73 (44) 0.98 (25) 2.44 (62) C RR10034S
S66M50 50 mm 2.8 (71) 1.73 (44) 1.18 (30) 2.68 (68) C RR10034S
