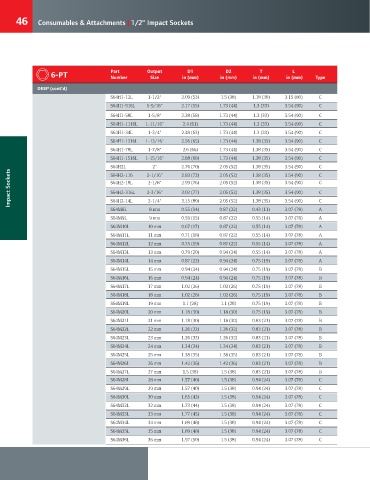

46 Consumables & Attachments | 1/2" Impact Sockets

Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type

DEEP (cont'd)
S64H1-12L 1-1/2" 2.09 (53) 1.5 (38) 1.18 (30) 3.15 (80) C
S64H1-916L 1-9/16" 2.17 (55) 1.73 (44) 1.3 (33) 3.54 (90) C
S64H1-58L 1-5/8" 2.28 (58) 1.73 (44) 1.3 (33) 3.54 (90) C
S64H1-1116L 1-11/16" 2.4 (61) 1.73 (44) 1.3 (33) 3.54 (90) C
S64H1-34L 1-3/4" 2.48 (63) 1.73 (44) 1.3 (33) 3.54 (90) C
S64H1-1316L 1-13/16" 2.56 (65) 1.73 (44) 1.38 (35) 3.54 (90) C
S64H1-78L 1-7/8" 2.6 (66) 1.73 (44) 1.38 (35) 3.54 (90) C
S64H1-1516L 1-15/16" 2.68 (68) 1.73 (44) 1.38 (35) 3.54 (90) C
2"
S64H2L 2-1/16" 2.76 (70) 2.05 (52) 1.38 (35) 3.54 (90) C C
Impact Sockets S64H2-18L 2-3/16" 2.99 (76) 2.05 (52) 1.38 (35) 3.54 (90) C C
1.38 (35)
2.05 (52)
2.83 (72)
S64H2-116
3.54 (90)
2-1/8"
3.03 (77)
S64H2-316L
3.54 (90)
2.05 (52)
1.38 (35)
C
S64H2-14L
3.07 (78)
S64M8L 2-1/4" 3.15 (80) 2.05 (52) 1.38 (35) 3.54 (90) A
0.87 (22)
0.55 (14)
8 mm
0.43 (11)
S64M9L 9 mm 0.59 (15) 0.87 (22) 0.55 (14) 3.07 (78) A
S64M10L 10 mm 0.67 (17) 0.87 (22) 0.55 (14) 3.07 (78) A
S64M11L 11 mm 0.71 (18) 0.87 (22) 0.55 (14) 3.07 (78) A
S64M12L 12 mm 0.75 (19) 0.87 (22) 0.55 (14) 3.07 (78) A
S64M13L 13 mm 0.79 (20) 0.94 (24) 0.55 (14) 3.07 (78) A
S64M14L 14 mm 0.87 (22) 0.94 (24) 0.75 (19) 3.07 (78) A
S64M15L 15 mm 0.94 (24) 0.94 (24) 0.75 (19) 3.07 (78) B
S64M16L 16 mm 0.94 (24) 0.94 (24) 0.75 (19) 3.07 (78) B
S64M17L 17 mm 1.02 (26) 1.02 (26) 0.75 (19) 3.07 (78) B
S64M18L 18 mm 1.02 (26) 1.02 (26) 0.75 (19) 3.07 (78) B
S64M19L 19 mm 1.1 (28) 1.1 (28) 0.75 (19) 3.07 (78) B
S64M20L 20 mm 1.18 (30) 1.18 (30) 0.75 (19) 3.07 (78) B
S64M21L 21 mm 1.18 (30) 1.18 (30) 0.83 (21) 3.07 (78) B
S64M22L 22 mm 1.26 (32) 1.26 (32) 0.83 (21) 3.07 (78) B
S64M23L 23 mm 1.26 (32) 1.26 (32) 0.83 (21) 3.07 (78) B
S64M24L 24 mm 1.34 (34) 1.34 (34) 0.83 (21) 3.07 (78) B
S64M25L 25 mm 1.38 (35) 1.38 (35) 0.83 (21) 3.07 (78) B
S64M26L 26 mm 1.42 (36) 1.42 (36) 0.83 (21) 3.07 (78) B
S64M27L 27 mm 1.5 (38) 1.5 (38) 0.83 (21) 3.07 (78) B
S64M28L 28 mm 1.57 (40) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M29L 29 mm 1.57 (40) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M30L 30 mm 1.65 (42) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M32L 32 mm 1.73 (44) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M33L 33 mm 1.77 (45) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M34L 34 mm 1.89 (48) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M35L 35 mm 1.89 (48) 1.5 (38) 0.94 (24) 3.07 (78) C
S64M36L 36 mm 1.97 (50) 1.5 (38) 0.94 (24) 3.07 (78) C
