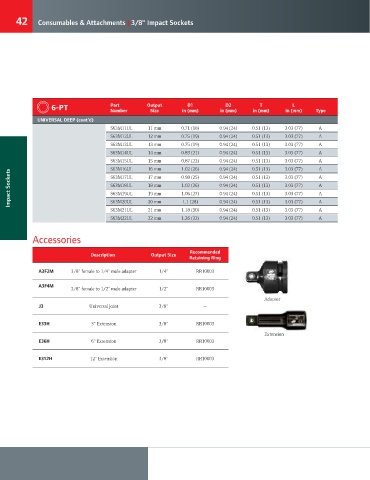

42 Consumables & Attachments | 3/8" Impact Sockets

D2
L
T
D1

6-PT Part Output in (mm) in (mm) in (mm) in (mm) Type
Size
Number
UNIVERSAL DEEP (cont'd)
S63M11UL 11 mm 0.71 (18) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M12UL 12 mm 0.75 (19) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M13UL 13 mm 0.75 (19) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M14UL 14 mm 0.83 (21) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M15UL 15 mm 0.87 (22) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M16UL 16 mm 1.02 (26) 0.94 (24) 0.51 (13) 3.03 (77) A
Impact Sockets S63M18UL 18 mm 1.02 (26) 0.94 (24) 0.51 (13) 3.03 (77) A
A
0.94 (24)
17 mm
S63M17UL
0.51 (13)
3.03 (77)
0.98 (25)
1.06 (27)
0.51 (13)
3.03 (77)
A
0.94 (24)
S63M19UL
19 mm
S63M20UL
1.1 (28)
0.51 (13)
0.94 (24)
S63M21UL 20 mm 1.18 (30) 0.94 (24) 0.51 (13) 3.03 (77) A
21 mm
A
3.03 (77)
S63M22UL 22 mm 1.26 (32) 0.94 (24) 0.51 (13) 3.03 (77) A
Accessories
Recommended
Description Output Size
Retaining Ring
A3F2M 3/8" female to 1/4" male adapter 1/4" RR10003
A3F4M 3/8" female to 1/2" male adapter 1/2" RR10003
iption
Adapter
J3 Universal joint 3/8" —
E33H 3" Extension 3/8" RR10003
Extension
E36H 6" Extension 3/8" RR10003

E312H 12" Extension 3/8" RR10003
