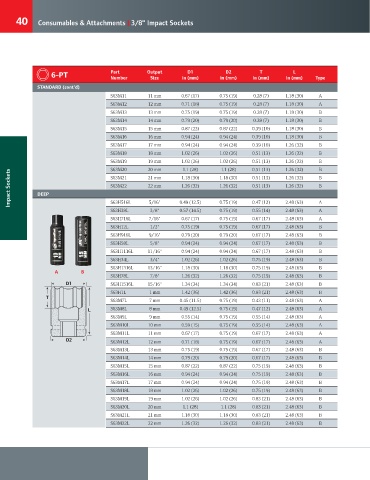

40 Consumables & Attachments | 3/8" Impact Sockets

Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type

STANDARD (cont'd)
S63M11 11 mm 0.67 (17) 0.75 (19) 0.28 (7) 1.18 (30) A
S63M12 12 mm 0.71 (18) 0.75 (19) 0.28 (7) 1.18 (30) A
S63M13 13 mm 0.75 (19) 0.75 (19) 0.28 (7) 1.18 (30) B
S63M14 14 mm 0.79 (20) 0.79 (20) 0.28 (7) 1.18 (30) B
S63M15 15 mm 0.87 (22) 0.87 (22) 0.39 (10) 1.18 (30) B
S63M16 16 mm 0.94 (24) 0.94 (24) 0.39 (10) 1.18 (30) B
S63M17 17 mm 0.94 (24) 0.94 (24) 0.39 (10) 1.26 (32) B
S63M18 18 mm 1.02 (26) 1.02 (26) 0.51 (13) 1.26 (32) B
S63M19 19 mm 1.02 (26) 1.02 (26) 0.51 (13) 1.26 (32) B B
1.1 (28)
S63M20
20 mm
1.26 (32)
1.1 (28)
0.51 (13)
Impact Sockets DEEP S63M21 21 mm 1.18 (30) 1.18 (30) 0.51 (13) 1.26 (32) B B
1.26 (32)
0.51 (13)
1.26 (32)
22 mm
S63M22
1.26 (32)
S63H516L
0.75 (19)
3/8"
A
2.48 (63)
0.57 (14.5)
S63H38L 5/16" 0.49 (12.5) 0.75 (19) 0.47 (12) 2.48 (63) A
0.55 (14)
S63H716L 7/16" 0.67 (17) 0.75 (19) 0.67 (17) 2.48 (63) A
S63H12L 1/2" 0.75 (19) 0.75 (19) 0.67 (17) 2.48 (63) B
S63H916L 9/16" 0.79 (20) 0.79 (20) 0.67 (17) 2.48 (63) B
S63H58L 5/8" 0.94 (24) 0.94 (24) 0.67 (17) 2.48 (63) B
S63H1116L 11/16" 0.94 (24) 0.94 (24) 0.67 (17) 2.48 (63) B
S63H34L 3/4" 1.02 (26) 1.02 (26) 0.75 (19) 2.48 (63) B
S63H1316L 13/16" 1.18 (30) 1.18 (30) 0.75 (19) 2.48 (63) B
A B
S63H78L 7/8" 1.26 (32) 1.26 (32) 0.75 (19) 2.48 (63) B
D1 S63H1516L 15/16" 1.34 (34) 1.34 (34) 0.83 (21) 2.48 (63) B
S63H1L 1 mm 1.42 (36) 1.42 (36) 0.83 (21) 2.48 (63) B
T
S63M7L 7 mm 0.45 (11.5) 0.75 (19) 0.43 (11) 2.48 (63) A
L S63M8L 8 mm 0.49 (12.5) 0.75 (19) 0.47 (12) 2.48 (63) A
S63M9L 9 mm 0.55 (14) 0.75 (19) 0.55 (14) 2.48 (63) A
S63M10L 10 mm 0.59 (15) 0.75 (19) 0.55 (14) 2.48 (63) A
S63M11L 11 mm 0.67 (17) 0.75 (19) 0.67 (17) 2.48 (63) A
D2 S63M12L 12 mm 0.71 (18) 0.75 (19) 0.67 (17) 2.48 (63) A
S63M13L 13 mm 0.75 (19) 0.75 (19) 0.67 (17) 2.48 (63) B
S63M14L 14 mm 0.79 (20) 0.79 (20) 0.67 (17) 2.48 (63) B
S63M15L 15 mm 0.87 (22) 0.87 (22) 0.75 (19) 2.48 (63) B
S63M16L 16 mm 0.94 (24) 0.94 (24) 0.75 (19) 2.48 (63) B
S63M17L 17 mm 0.94 (24) 0.94 (24) 0.75 (19) 2.48 (63) B
S63M18L 18 mm 1.02 (26) 1.02 (26) 0.75 (19) 2.48 (63) B
S63M19L 19 mm 1.02 (26) 1.02 (26) 0.83 (21) 2.48 (63) B
S63M20L 20 mm 1.1 (28) 1.1 (28) 0.83 (21) 2.48 (63) B
S63M21L 21 mm 1.18 (30) 1.18 (30) 0.83 (21) 2.48 (63) B
S63M22L 22 mm 1.26 (32) 1.26 (32) 0.83 (21) 2.48 (63) B
