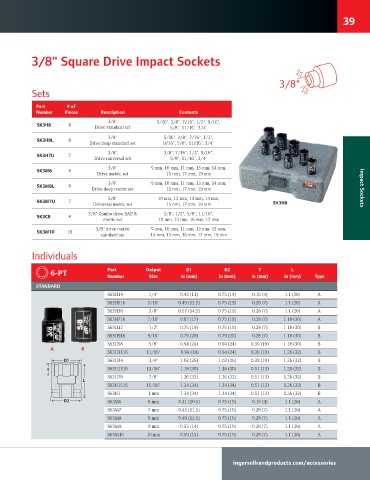

39

3/8" Square Drive Impact Sockets

3/8"
Sets

Part # of
Number Pieces Description Contents
3/8" 5/16", 3/8", 7/16", 1/2", 9/16",
SK3H8 8
Drive standard set 5/8", 11/16", 3/4"
3/8" 5/16", 3/8", 7/16", 1/2",
SK3H8L 8
Drive deep standard set 9/16", 5/8", 11/16", 3/4"
3/8" 3/8", 7/16", 1/2", 9/16",
SK3H7U 7
Drive universal set 5/8", 11/16", 3/4"
3/8" 9 mm, 10 mm, 11 mm, 13 mm, 14 mm,
SK3M8 8
Drive metric set 15 mm, 17 mm, 19 mm
3/8" 9 mm, 10 mm, 11 mm, 13 mm, 14 mm,
SK3M8L 8
Drive deep metric set 15 mm, 17 mm, 19 mm Impact Sockets
3/8" 10 mm, 12 mm, 13 mm, 14 mm,
SK3M7U 7 SK3H8
Universal metric set 15 mm, 17 mm, 19 mm
3/8" Combo drive SAE & 3/8", 1/2", 5/8", 11/16",
SK3C8 8
metric set 10 mm, 13 mm, 16 mm, 17 mm
3/8" drive metric 9 mm, 10 mm, 11 mm, 12 mm, 13 mm,
SK3M10 10
standard set 14 mm, 15 mm, 16 mm, 17 mm, 19 mm

Individuals

6-PT Part Output D1 D2 T L
Number Size in (mm) in (mm) in (mm) in (mm) Type
STANDARD
S63H14 1/4" 0.43 (11) 0.75 (19) 0.16 (4) 1.1 (28) A
S63H516 5/16" 0.49 (12.5) 0.75 (19) 0.28 (7) 1.1 (28) A
S63H38 3/8" 0.57 (14.5) 0.75 (19) 0.28 (7) 1.1 (28) A
S63H716 7/16" 0.67 (17) 0.75 (19) 0.28 (7) 1.18 (30) A
S63H12 1/2" 0.75 (19) 0.75 (19) 0.28 (7) 1.18 (30) B
S63H916 9/16" 0.79 (20) 0.79 (20) 0.28 (7) 1.18 (30) B
S63H58 5/8" 0.94 (24) 0.94 (24) 0.39 (10) 1.18 (30) B
A B
S63H1116 11/16" 0.94 (24) 0.94 (24) 0.39 (10) 1.26 (32) B
D1 S63H34 3/4" 1.02 (26) 1.02 (26) 0.39 (10) 1.26 (32) B
T S63H1316 13/16" 1.18 (30) 1.18 (30) 0.51 (13) 1.26 (32) B
S63H78 7/8" 1.26 (32) 1.26 (32) 0.51 (13) 1.26 (32) B
L
S63H1516 15/16" 1.34 (34) 1.34 (34) 0.51 (13) 1.26 (32) B
S63H1 1 mm 1.34 (34) 1.34 (34) 0.51 (13) 1.26 (32) B
D2 S63M6 6 mm 0.41 (10.5) 0.75 (19) 0.16 (4) 1.1 (28) A
S63M7 7 mm 0.45 (11.5) 0.75 (19) 0.28 (7) 1.1 (28) A
S63M8 8 mm 0.49 (12.5) 0.75 (19) 0.28 (7) 1.1 (28) A
S63M9 9 mm 0.55 (14) 0.75 (19) 0.28 (7) 1.1 (28) A
S63M10 10 mm 0.59 (15) 0.75 (19) 0.28 (7) 1.1 (28) A

ingersollrandproducts.com/accessories
