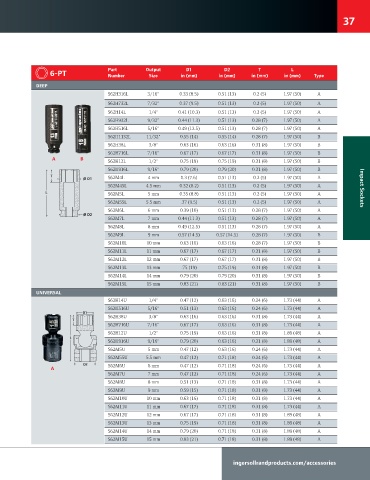

37

Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type
DEEP
S62H316L 3/16" 0.33 (8.5) 0.51 (13) 0.2 (5) 1.97 (50) A
S62H732L 7/32" 0.37 (9.5) 0.51 (13) 0.2 (5) 1.97 (50) A
S62H14L 1/4" 0.41 (10.3) 0.51 (13) 0.2 (5) 1.97 (50) A
S62H932L 9/32" 0.44 (11.3) 0.51 (13) 0.28 (7) 1.97 (50) A
S62H516L 5/16" 0.49 (12.5) 0.51 (13) 0.28 (7) 1.97 (50) A
S62H1132L 11/32" 0.55 (14) 0.55 (14) 0.28 (7) 1.97 (50) B
S62H38L 3/8" 0.63 (16) 0.63 (16) 0.31 (8) 1.97 (50) B
S62H716L 7/16" 0.67 (17) 0.67 (17) 0.31 (8) 1.97 (50) B
A B
S62H12L 1/2" 0.75 (19) 0.75 (19) 0.31 (8) 1.97 (50) B
S62H916L 9/16" 0.79 (20) 0.79 (20) 0.31 (8) 1.97 (50) B
T
Ø D1 S62M4L 4 mm 0.3 (7.6) 0.51 (13) 0.2 (5) 1.97 (50) A
S62M45L 4.5 mm 0.32 (8.2) 0.51 (13) 0.2 (5) 1.97 (50) A Impact Sockets
L S62M5L 5 mm 0.35 (8.8) 0.51 (13) 0.2 (5) 1.97 (50) A
S62M55L 5.5 mm .37 (9.5) 0.51 (13) 0.2 (5) 1.97 (50) A
S62M6L 6 mm 0.39 (10) 0.51 (13) 0.28 (7) 1.97 (50) A
Ø D2
S62M7L 7 mm 0.44 (11.3) 0.51 (13) 0.28 (7) 1.97 (50) A
S62M8L 8 mm 0.49 (12.5) 0.51 (13) 0.28 (7) 1.97 (50) A
S62M9L 9 mm 0.57 (14.5) 0.57 (14.5) 0.28 (7) 1.97 (50) B
S62M10L 10 mm 0.63 (16) 0.63 (16) 0.28 (7) 1.97 (50) B
S62M11L 11 mm 0.67 (17) 0.67 (17) 0.31 (8) 1.97 (50) B
S62M12L 12 mm 0.67 (17) 0.67 (17) 0.31 (8) 1.97 (50) B
S62M13L 13 mm .75 (19) 0.75 (19) 0.31 (8) 1.97 (50) B
S62M14L 14 mm 0.79 (20) 0.79 (20) 0.31 (8) 1.97 (50) B
S62M15L 15 mm 0.83 (21) 0.83 (21) 0.31 (8) 1.97 (50) B
UNIVERSAL
S62H14U 1/4" 0.47 (12) 0.63 (16) 0.24 (6) 1.73 (44) A
S62H516U 5/16" 0.51 (13) 0.63 (16) 0.24 (6) 1.73 (44) A
D1
S62H38U 3/8" 0.63 (16) 0.63 (16) 0.31 (8) 1.73 (44) A
T
S62H716U 7/16" 0.67 (17) 0.63 (16) 0.31 (8) 1.73 (44) A
S62H12U 1/2" 0.75 (19) 0.63 (16) 0.31 (8) 1.89 (48) A
L
S62H916U 9/16" 0.79 (20) 0.63 (16) 0.31 (8) 1.89 (48) A
S62M5U 5 mm 0.47 (12) 0.63 (16) 0.24 (6) 1.73 (44) A
S62M55U 5.5 mm 0.47 (12) 0.71 (18) 0.24 (6) 1.73 (44) A
D2 S62M6U 6 mm 0.47 (12) 0.71 (18) 0.24 (6) 1.73 (44) A
A
S62M7U 7 mm 0.47 (12) 0.71 (18) 0.24 (6) 1.73 (44) A
S62M8U 8 mm 0.51 (13) 0.71 (18) 0.31 (8) 1.73 (44) A
S62M9U 9 mm 0.59 (15) 0.71 (18) 0.31 (8) 1.73 (44) A
S62M10U 10 mm 0.63 (16) 0.71 (18) 0.31 (8) 1.73 (44) A
S62M11U 11 mm 0.67 (17) 0.71 (18) 0.31 (8) 1.73 (44) A
S62M12U 12 mm 0.67 (17) 0.71 (18) 0.31 (8) 1.89 (48) A
S62M13U 13 mm 0.75 (19) 0.71 (18) 0.31 (8) 1.89 (48) A
S62M14U 14 mm 0.79 (20) 0.71 (18) 0.31 (8) 1.89 (48) A
S62M15U 15 mm 0.83 (21) 0.71 (18) 0.31 (8) 1.89 (48) A
