33

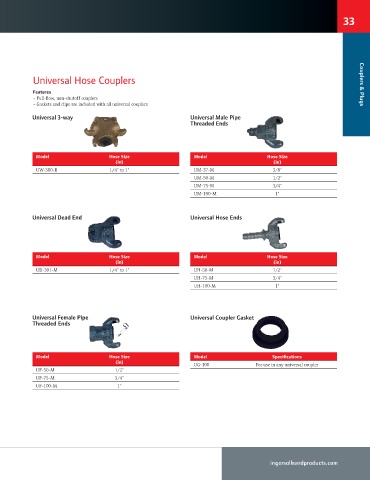

Universal Hose Couplers Couplers & Plugs

Features
• Full-low, non-shutoff couplers
• Gaskets and clips are included with all universal couplers

Universal 3-way Universal Male Pipe
Threaded Ends

Model Hose Size Model Hose Size
(in) (in)
UW-300-B 1/4" to 1" UM-37-M 3/8"
UM-50-M 1/2"
UM-75-M 3/4"
UM-100-M 1"

Universal Dead End Universal Hose Ends

Model Hose Size Model Hose Size
(in) (in)
UD-301-M 1/4" to 1" UH-50-M 1/2"
UH-75-M 3/4"
UH-100-M 1"

Universal Female Pipe Universal Coupler Gasket
Threaded Ends

Model Hose Size Model Specifications
(in)
UG-100 For use in any universal coupler
UF-50-M 1/2"

UF-75-M 3/4"
UF-100-M 1" t r xqy z t | ~ vy { }u | v
