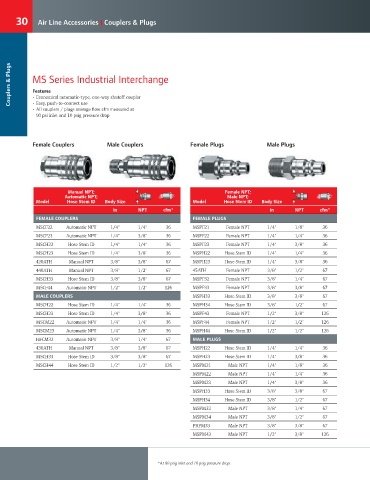

30 Air Line Accessories | Couplers & Plugs

Couplers & Plugs MS Series Industrial Interchange

Features
• Economical automatic-type, one-way shutoff coupler
• Easy, push-to-connect use
• All couplers / plugs average low cfm measured at
90 psi inlet and 10 psig pressure drop

Female Couplers Male Couplers Female Plugs Male Plugs

Manual NPT; Female NPT;
Automatic NPT; Male NPT;
Model Hose Stem ID Body Size Model Hose Stem ID Body Size
in NPT cfm* in NPT cfm*
FEMALE COUPLERS FEMALE PLUGS
MSCF22 Automatic NPT 1/4" 1/4" 36 MSPF21 Female NPT 1/4" 1/8" 36
MSCF23 Automatic NPT 1/4" 3/8" 36 MSPF22 Female NPT 1/4" 1/4" 36
MSCH22 Hose Stem ID 1/4" 1/4" 36 MSPF23 Female NPT 1/4" 3/8" 36
MSCH23 Hose Stem ID 1/4" 3/8" 36 MSPH22 Hose Stem ID 1/4" 1/4" 36
420ATH Manual NPT 3/8" 3/8" 67 MSPH23 Hose Stem ID 1/4" 3/8" 36
440ATH Manual NPT 3/8" 1/2" 67 45ATH Female NPT 3/8" 1/2" 67
MSCH33 Hose Stem ID 3/8" 3/8" 67 MSPF32 Female NPT 3/8" 1/4" 67
MSCF44 Automatic NPT 1/2" 1/2" 126 MSPF33 Female NPT 3/8" 3/8" 67
MALE COUPLERS MSPH33 Hose Stem ID 3/8" 3/8" 67
MSCH22 Hose Stem ID 1/4" 1/4" 36 MSPH34 Hose Stem ID 3/8" 1/2" 67
MSCH23 Hose Stem ID 1/4" 3/8" 36 MSPF43 Female NPT 1/2" 3/8" 126
MSCM22 Automatic NPT 1/4" 1/4" 36 MSPF44 Female NPT 1/2" 1/2" 126
MSCM23 Automatic NPT 1/4" 3/8" 36 MSPH44 Hose Stem ID 1/2" 1/2" 126
HFCM32 Automatic NPT 3/8" 1/4" 67 MALE PLUGS
430ATH Manual NPT 3/8" 3/8" 67 MSPH22 Hose Stem ID 1/4" 1/4" 36
MSCH33 Hose Stem ID 3/8" 3/8" 67 MSPH23 Hose Stem ID 1/4" 3/8" 36
MSCH44 Hose Stem ID 1/2" 1/2" 126 MSPM21 Male NPT 1/4" 1/8" 36
MSPM22 Male NPT 1/4" 1/4" 36
MSPM23 Male NPT 1/4" 3/8" 36
MSPH33 Hose Stem ID 3/8" 3/8" 67
MSPH34 Hose Stem ID 3/8" 1/2" 67
MSPM32 Male NPT 3/8" 1/4" 67
MSPM34 Male NPT 3/8" 1/2" 67
PRPM33 Male NPT 3/8" 3/8" 67
MSPM43 Male NPT 1/2" 3/8" 126

*At 90 psig inlet and 10 psig pressure drop. ingersollrandproducts.com
