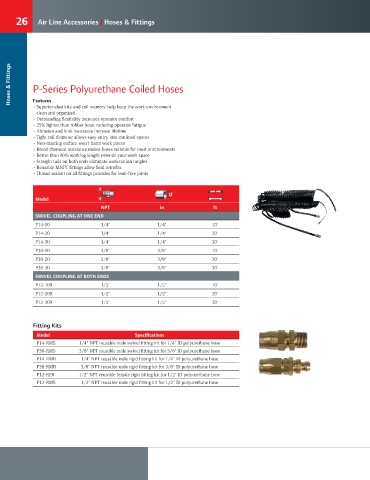

26 Air Line Accessories | Hoses & Fittings

Hoses & Fittings P-Series Polyurethane Coiled Hoses

Features
• Superior elasticity and coil memory help keep the work environment
clean and organized
• Outstanding lexibility increases operator comfort
• 25% lighter than rubber hose, reducing operator fatigue
• Abrasion and kink resistance increase lifetime
• Tight coil diameter allows easy entry into conined spaces
• Non-marring surface won't harm work pieces
• Broad chemical resistance makes hoses suitable for most environments
• Better than 80% working length extends your work space
• Straight tails on both ends eliminate workstation tangles
• Reusable MNPT ittings allow ield retroits
• Thread sealant on all ittings provides for leak-free joints

Ø
Model
NPT in ft
swivel COUPliNG AT ONe eND
P14-10 1/4" 1/4" 10'
P14-20 1/4" 1/4" 20'
P14-30 1/4" 1/4" 30'
P38-10 3/8" 3/8" 10'
P38-20 3/8" 3/8" 20'
P38-30 3/8" 3/8" 30'
swivel COUPliNG AT BOTH eNDs
P12-10R 1/2" 1/2" 10'
P12-20R 1/2" 1/2" 20'
P12-30R 1/2" 1/2" 30'

Fitting Kits
Model speciications
P14-RMS 1/4" NPT reusable male swivel itting kit for 1/4" ID polyurethane hose
P38-RMS 3/8" NPT reusable male swivel itting kit for 3/8" ID polyurethane hose
P14-RMR 1/4" NPT reusable male rigid itting kit for 1/4" ID polyurethane hose
P38-RMR 3/8" NPT reusable male rigid itting kit for 3/8" ID polyurethane hose
P12-RFR 1/2" NPT reusable female rigid itting kit for 1/2" ID polyurethane hose
P12-RMS 1/2" NPT reusable male rigid itting kit for 1/2" ID polyurethane hose
