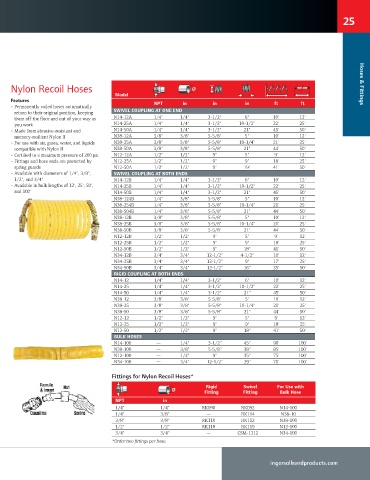

Nylon Recoil Hoses Ø Hoses & Fittings
Model
Features
NPT in in in ft ft
• Permanently coiled hoses automatically
Swivel COUPliNG AT ONe eND
return to their original position, keeping
them off the loor and out of your way as N14-12A 1/4" 1/4" 3-1/2" 6" 10' 12'
you work N14-25A 1/4" 1/4" 3-1/2" 10-1/2" 22' 25'
• Made from abrasive-resistant and N14-50A 1/4" 1/4" 3-1/2" 21" 45' 50'
memory-resilient Nylon II N38-12A 3/8" 3/8" 5-5/8" 5" 10' 12'
• For use with air, gases, water, and liquids N38-25A 3/8" 3/8" 5-5/8" 10-1/4" 21' 25'
compatible with Nylon II N38-50A 3/8" 3/8" 5-5/8" 21" 44' 50'
• Certiied to a maximum pressure of 200 psi N12-12A 1/2" 1/2" 9" 5" 9' 12'
• Fittings and hose ends are protected by N12-25A 1/2" 1/2" 9" 9" 18' 25'
spring guards N12-50A 1/2" 1/2" 9" 19" 41' 50'
• Available with diameters of 1/4", 3/8", Swivel COUPliNG AT BOTH eNDS
1/2", and 3/4" N14-12B 1/4" 1/4" 3-1/2" 6" 10' 12'
• Available in bulk lengths of 12', 25', 50', N14-25B 1/4" 1/4" 3-1/2" 10-1/2" 22' 25'
and 100' N14-50B 1/4" 1/4" 3-1/2" 21" 45' 50'
N38-124B 1/4" 3/8" 5-5/8" 5" 10' 12'
N38-254B 1/4" 3/8" 5-5/8" 10-1/4" 21' 25'
N38-504B 1/4" 3/8" 5-5/8" 21" 44' 50'
N38-12B 3/8" 3/8" 5-5/8" 5" 10' 12'
N38-25B 3/8" 3/8" 5-5/8" 10-1/4" 21' 25'
N38-50B 3/8" 3/8" 5-5/8" 21" 44' 50'
N12-12B 1/2" 1/2" 9" 5" 9' 12'
N12-25B 1/2" 1/2" 9" 9" 18' 25'
N12-50B 1/2" 1/2" 9" 18" 41' 50'
N34-12B 3/4" 3/4" 12-1/2" 4-1/2" 10' 12'
N34-25B 3/4" 3/4" 12-1/2" 9" 17' 25'
N34-50B 3/4" 3/4" 12-1/2" 16" 35' 50'
riGiD COUPliNG AT BOTH eNDS
N14-12 1/4" 1/4" 3-1/2" 6" 10' 12'
N14-25 1/4" 1/4" 3-1/2" 10-1/2" 22' 25'
N14-50 1/4" 1/4" 3-1/2" 21" 45' 50'
N38-12 3/8" 3/8" 5-5/8" 5" 10' 12'
N38-25 3/8" 3/8" 5-5/8" 10-1/4" 21' 25'
N38-50 3/8" 3/8" 5-5/8" 21" 44' 50'
N12-12 1/2" 1/2" 9" 5" 9' 12'
N12-25 1/2" 1/2" 9" 9" 18' 25'
N12-50 1/2" 1/2" 9" 18" 41' 50'
BUlK HOSeS
N14-100 — 1/4" 3-1/2" 45" 90' 100'
N38-100 — 3/8" 5-5/8" 38" 85' 100'
N12-100 — 1/2" 9" 35" 75' 100'
N34-100 — 3/4" 12-1/2" 29" 70' 100'

Fittings for Nylon Recoil Hoses*
rigid Swivel For Use with
Ø
Fitting Fitting Bulk Hose
NPT in
1/4" 1/4" RK090 RK092 N14-100
1/4" 3/8" — RK114 N38-10
3/8" 3/8" RK110 RK112 N38-100
1/2" 1/2" RK118 RK119 N12-100
3/4" 3/4" — CSM-1212 N34-100
*Order two fittings per hose. - 2+3 4 . 03 5 7/ 6 6 8 09
