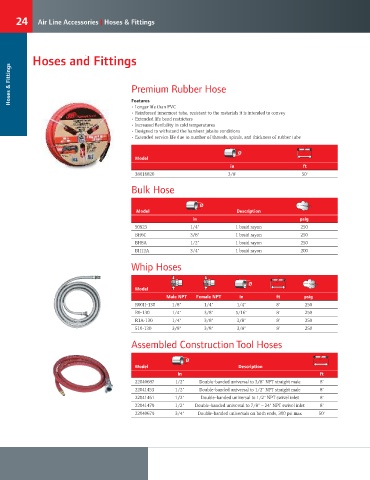

24 Air Line Accessories | Hoses & Fittings

Hoses & Fittings H ! "#$ Premium Rubber Hose

%'(( '#)

Features
• Longer life than PVC
• Reinforced innermost tube, resistant to the materials it is intended to convey
• Extended life bend restricters
• Increased lexibility in cold temperatures
• Designed to withstand the harshest jobsite conditions
• Extended service life due to number of threads, spirals, and thickness of rubber tube

Ø
Model
in ft
38016820 3/8' 50'
Bulk Hose

Ø
Model Description
in psig
50923 1/4" 1 braid rayon 250
BH6C 3/8" 1 braid rayon 250
BH8A 1/2" 1 braid rayon 250
BH12A 3/4" 1 braid rayon 200

Whip Hoses

Ø
Model
Male NPT Female NPT in ft psig
R00H-130 1/8" 1/4" 1/4" 8' 250
R0-130 1/4" 3/8" 5/16" 8' 250
R1A-130 1/4" 3/8" 3/8" 8' 250
510-130 3/8" 3/8" 3/8" 8' 250

Assembled Construction Tool Hoses

Ø
Model Description
in ft
22040687 1/2" Double-banded universal to 3/8" NPT straight male 8'
22041453 1/2" Double-banded universal to 1/2" NPT straight male 8'
22041461 1/2" Double-banded universal to 1/2" NPT swivel inlet 8'
22041479 1/2" Double-banded universal to 7/8" – 24" NPT swivel inlet 8'
22040679 3/4" Double-banded universals on both ends, 300 psi max 50'
