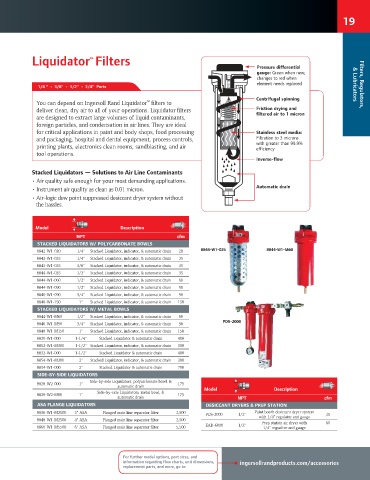

19

™
Liquidator Filters
Pressure differential
gauge: Green when new;
changes to red when
element needs replaced
1/4 " • 3/8" • 1/2" • 3/4" Ports & Lubricators Filters, Regulators,
Centrifugal spinning
™
You can depend on Ingersoll Rand Liquidator ilters to
deliver clean, dry air to all of your operations. Liquidator ilters Friction drying and
filtered air to 1 micron
are designed to extract large volumes of liquid contaminants,
foreign particles, and condensation in air lines. They are ideal
for critical applications in paint and body shops, food processing Stainless steel media:
and packaging, hospital and dental equipment, process controls, Filtration to 3 microns
with greater than 99.9%
printing plants, electronics clean rooms, sandblasting, and air efficiency
tool operations.
Inverse-flow

Stacked liquidators — Solutions to Air line Contaminants
• Air quality safe enough for your most demanding applications.
Automatic drain
• Instrument air quality as clean as 0.01 micron.
• Air-logic dew point suppressed desiccant dryer system without
the hassles.

Model Description
NPT cfm
STACKED lIQUIDATORS W/ POlYCARBONATE BOWlS
8842-W1-020 1/4" Stacked Liquidator, indicator, & automatic drain 20 8844-W1-035 8844-W1-M60
8842-W1-035 1/4" Stacked Liquidator, indicator, & automatic drain 35
8843-W1-035 3/8" Stacked Liquidator, indicator, & automatic drain 35
8844-W1-035 1/2" Stacked Liquidator, indicator, & automatic drain 35
8844-W1-060 1/2" Stacked Liquidator, indicator, & automatic drain 60
8844-W1-090 1/2" Stacked Liquidator, indicator, & automatic drain 90
8846-W1-090 3/4" Stacked Liquidator, indicator, & automatic drain 90
8848-W1-150 1" Stacked Liquidator, indicator, & automatic drain 150
STACKED lIQUIDATORS W/ METAl BOWlS
8844-W1-M60 1/2" Stacked Liquidator, indicator, & automatic drain 60
PDS-2000
8846-W1-M90 3/4" Stacked Liquidator, indicator, & automatic drain 90
8848-W1-M150 1" Stacked Liquidator, indicator, & automatic drain 150
8830-W1-000 1-1/4" Stacked Liquidator & automatic drain 400
8852-W1-M300 1-1/2" Stacked Liquidator, indicator, & automatic drain 300
8832-W1-000 1-1/2" Stacked Liquidator & automatic drain 400
8854-W1-M300 2" Stacked Liquidator, indicator, & automatic drain 300
8834-W1-000 2" Stacked Liquidator & automatic drain 700
SIDE-BY-SIDE lIQUIDATORS
Side-by-side Liquidators, polycarbonate bowl, &
8828-W2-000 1" 175
automatic drain
Side-by-side Liquidators, metal bowl, & Model Description
8828-W2-M00 1" 175
automatic drain NPT cfm
ASA FlANGE lIQUIDATORS DESICCANT DRYERS & PREP STATION
8836-W1-M2500 3" ASA Flanged main line separator filter 2,500 Paint booth desiccant dryer system
PDS-2000 1/2" 25
with 1/4" regulator and gauge
8848-W1-M2500 4" ASA Flanged main line separator filter 2,500
Prep station air dryer with 60
EAD-6000 1/2"
8860-W1-M5500 6" ASA Flanged main line separator filter 5,500 1/4" regualtor and gauge

For further model options, port sizes, and
information regarding flow charts, unit dimensions, ingersollrandproducts.com/accessories
replacement parts, and more, go to:
