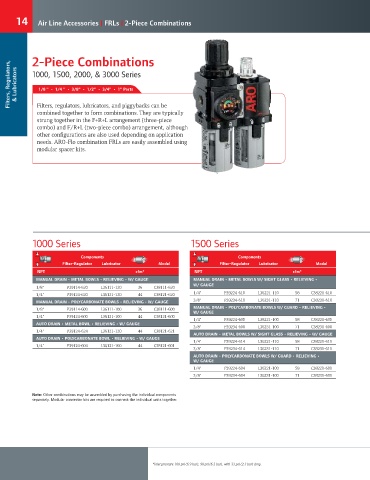

14 Air Line Accessories | FRLs | 2-Piece Combinations

2-Piece Combinations

1000, 1500, 2000, & 3000 Series
Ç
Æ
Å
Ì Æ
à Å
Ë Ì
 Ã
1/8 " • 1/4 " • 3/8" • 1/2" • 3/4" • 1" Ports
Ê Ë
É Ð
Á
Ä Å
È Ï
Ç Ê
Filters, regulators, lubricators, and piggybacks can be
Æ
Å Î
Ä
combined together to form combinations. They are typically
à Í
Â
Á
strung together in the F+R+L arrangement (three-piece
À
combo) and F/R+L (two-piece combo) arrangement, although
other conigurations are also used depending on application
needs. ARO-Flo combination FRLs are easily assembled using
modular spacer kits.

1000 Series 1500 Series

Components Components
Filter-regulator lubricator Model Filter-regulator lubricator Model
NPT cfm* NPT cfm*
MANUAl DrAIN • METAl BOWlS • rElIEVING • W/ GAUGE MANUAl DrAIN • METAl BOWlS W/ SIGHT GlASS • rElIEVING •
W/ GAUGE
1/8" P39114-620 L36111-120 36 C38111-620
1/4" P39224-610 L36221-110 58 C38221-610
1/4" P39124-620 L36121-120 44 C38121-620
3/8" P39234-610 L36231-110 71 C38231-610
MANUAl DrAIN • POlYCArBONATE BOWlS • rElIEVING • W/ GAUGE
MANUAl DrAIN • POlYCArBONATE BOWlS W/ GUArD • rElIEVING •
1/8" P39114-600 L36111-100 36 C38111-600
W/ GAUGE
1/4" P39124-600 L36121-100 44 C38121-600
1/4" P39224-600 L36221-100 58 C38221-600
AUTO DrAIN • METAl BOWl • rElIEVING • W/ GAUGE
3/8" P39234-600 L36231-100 71 C38231-600
1/4" P39124-624 L36121-120 44 C38121-621
AUTO DrAIN • METAl BOWlS W/ SIGHT GlASS • rElIEVING • W/ GAUGE
AUTO DrAIN • POlYCArBONATE BOWl • rElIEVING • W/ GAUGE
1/4" P39224-614 L36221-110 58 C38221-611
1/4" P39124-604 L36121-100 44 C38121-601
3/8" P39234-614 L36231-110 71 C38231-611
AUTO DrAIN • POlYCArBONATE BOWlS W/ GUArD • rElIEVING •
W/ GAUGE
1/4" P39224-604 L36221-100 58 C38221-601
3/8" P39234-604 L36231-100 71 C38231-601
Note: Other combinations may be assembled by purchasing the individual components
separately. Modular connector kits are required to connect the individual units together.

*Inlet pressure 100 psi (6.9 bar), 90 psi (6.2 bar), with 33 psi (2.3 bar) drop.
