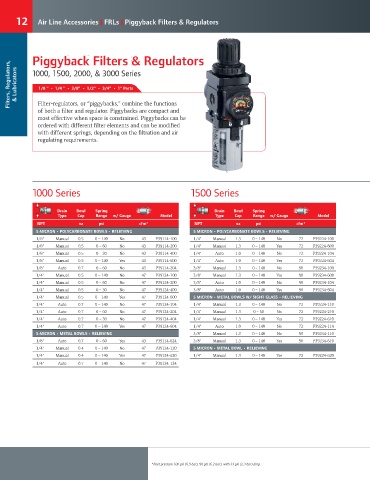

12 Air Line Accessories | FRLs | Piggyback Filters & Regulators

1000, 1500, 2000, & 3000 Series
¥
¤
P°±±y²³´µ ¶°·¸¹º» ¼ ½¹±¾·³¸ ¿º»
£
ª ¤
¡ £
© ª
¡
1/8 " • 1/4 " • 3/8" • 1/2" • 3/4" • 1" Ports
¨ ©
§ ¯
Ÿ
¢ £
¦ ®
Filter-regulators, or “piggybacks,” combine the functions
¥ ¨
¤
£ ¬
of both a ilter and regulator. Piggybacks are compact and
¢
¡ «

Ÿ
most effective when space is constrained. Piggybacks can be
ž
ordered with different ilter elements and can be modiied
with different springs, depending on the iltration and air
regulating requirements.
1000 Series 1500 Series

Drain Bowl Spring Drain Bowl Spring
Type Cap range w/ Gauge Model Type Cap range w/ Gauge Model
NPT oz psi cfm* NPT oz psi cfm*
5 MICrON • POLYCArBONATE BOWLS • rELIEVING 5 MICrON • POLYCArBONATE BOWLS • rELIEVING
1/8" Manual 0.5 0 – 140 No 43 P39114-100 1/4" Manual 1.3 0 – 140 No 72 P39224-100
1/8" Manual 0.5 0 – 60 No 43 P39114-200 1/4" Manual 1.3 0 – 140 Yes 72 P39224-600
1/8" Manual 0.5 0 – 30 No 43 P39114-400 1/4" Auto 1.0 0 – 140 No 72 P39224-104
1/8" Manual 0.5 0 – 140 Yes 43 P39114-600 1/4" Auto 1.0 0 – 140 Yes 72 P39224-604
1/8" Auto 0.7 0 – 60 No 43 P39114-204 3/8" Manual 1.3 0 – 140 No 90 P39234-100
1/4" Manual 0.5 0 – 140 No 47 P39124-100 3/8" Manual 1.3 0 – 140 Yes 90 P39234-600
1/4" Manual 0.5 0 – 60 No 47 P39124-200 3/8" Auto 1.0 0 – 140 No 90 P39234-104
1/4" Manual 0.5 0 – 30 No 47 P39124-400 3/8" Auto 1.0 0 – 140 Yes 90 P39234-604
1/4" Manual 0.5 0 – 140 Yes 47 P39124-600 5 MICrON • METAL BOWLS W/ SIGHT GLASS • rELIEVING
1/4" Auto 0.7 0 – 140 No 47 P39124-104 1/4" Manual 1.3 0 – 140 No 72 P39224-110
1/4" Auto 0.7 0 – 60 No 47 P39124-204 1/4" Manual 1.3 0 – 60 No 72 P39224-210
1/4" Auto 0.7 0 – 30 No 47 P39124-404 1/4" Manual 1.3 0 – 140 Yes 72 P39224-610
1/4" Auto 0.7 0 – 140 Yes 47 P39124-604 1/4" Auto 1.0 0 – 140 No 72 P39224-114
5 MICrON • METAL BOWLS • rELIEVING 3/8" Manual 1.3 0 – 140 No 90 P39234-110
1/8" Auto 0.7 0 – 60 Yes 43 P39114-624 3/8" Manual 1.3 0 – 140 Yes 90 P39234-610
1/4" Manual 0.4 0 – 140 No 47 P39124-120 5 MICrON • METAL BOWL • rELIEVING
1/4" Manual 0.4 0 – 140 Yes 47 P39124-620 1/4" Manual 1.3 0 – 140 Yes 72 P39224-620
1/4" Auto 0.7 0 – 140 No 47 P39124-124

*Inlet pressure 100 psi (6.9 bar), 90 psi (6.2 bar), with 33 psi (2.3 bar) drop.
