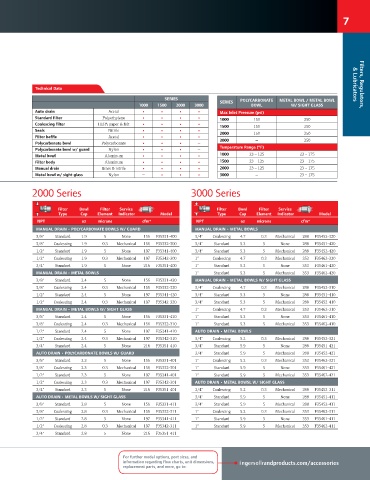

7

Technical Data & Lubricators Filters, Regulators,
SERIES POLYCARBONATE METAL BOWL / METAL BOWL
SERIES
1000 1500 2000 3000 BOWL W/ SIGHT GLASS
Auto drain Acetal • • • • Max Inlet Pressure (psi)
Standard ilter Polyethylene • • • • 1000 150 250
Coalescing ilter HEPA paper & felt • • • •
1500 150 250
Seals Nitrile • • • •
2000 150 250
Filter bafle Acetal • • • •
3000 – 250
Polycarbonate bowl Polycarbonate • • • –
Temperature Range (ºF)
Polycarbonate bowl w/ guard Nylon • • • –
Metal bowl Aluminum • • • • 1000 23 – 125 23 – 175
Filter body Aluminum • • • • 1500 23 – 125 23 – 175
Manual drain Brass & nitrile • • • • 2000 23 – 125 23 – 175
Metal bowl w/ sight glass Nylon – • • • 3000 – 23 – 175
2000 Series 3000 Series

Filter Bowl Filter Service Filter Bowl Filter Service
Type Cap Element Indicator Model Type Cap Element Indicator Model
NPT oz microns cfm* NPT oz microns cfm*
MANUAL DRAIN • POLYCARBONATE BOWLS W/ GUARD MANUAL DRAIN • METAL BOWLS
3/8" Standard 1.9 5 None 156 F35331-400 3/4" Coalescing 4.7 0.3 Mechanical 288 F35452-320
3/8" Coalescing 1.9 0.3 Mechanical 156 F35332-300 3/4" Standard 5.3 5 None 288 F35451-420
1/2" Standard 1.9 5 None 197 F35341-400 3/4" Standard 5.3 5 Mechanical 288 F35452-420
1/2" Coalescing 1.9 0.3 Mechanical 197 F35342-300 1" Coalescing 4.7 0.3 Mechanical 353 F35462-320
3/4" Standard 1.9 5 None 216 F35351-400 1" Standard 5.3 5 None 353 F35461-420
MANUAL DRAIN • METAL BOWLS 1" Standard 5.3 5 Mechanical 353 F35462-420
3/8" Standard 2.4 5 None 156 F35331-420 MANUAL DRAIN • METAL BOWLS W/ SIGHT GLASS
3/8" Coalescing 2.4 0.3 Mechanical 156 F35332-320 3/4" Coalescing 4.7 0.3 Mechanical 288 F35452-310
1/2" Standard 2.4 5 None 197 F35341-420 3/4" Standard 5.3 5 None 288 F35451-410
1/2" Coalescing 2.4 0.3 Mechanical 197 F35342-320 3/4" Standard 5.3 5 Mechanical 288 F35452-410
MANUAL DRAIN • METAL BOWLS W/ SIGHT GLASS 1" Coalescing 4.7 0.3 Mechanical 353 F35462-310
3/8" Standard 2.4 5 None 156 F35331-410 1" Standard 5.3 5 None 353 F35461-410
3/8" Coalescing 2.4 0.3 Mechanical 156 F35332-310 1" Standard 5.3 5 Mechanical 353 F35462-410
1/2" Standard 2.4 5 None 197 F35341-410 AUTO DRAIN • METAL BOWLS
1/2" Coalescing 2.4 0.3 Mechanical 197 F35342-310 3/4" Coalescing 5.2 0.3 Mechanical 288 F35452-321
3/4" Standard 2.4 5 None 216 F35351-410 3/4" Standard 5.9 5 None 288 F35451-421
AUTO DRAIN • POLYCARBONATE BOWLS W/ GUARD 3/4" Standard 5.9 5 Mechanical 288 F35452-421
3/8" Standard 2.3 5 None 156 F35331-401 1" Coalescing 5.2 0.3 Mechanical 353 F35462-321
3/8" Coalescing 2.3 0.3 Mechanical 156 F35332-301 1" Standard 5.9 5 None 353 F35461-421
1/2" Standard 2.3 5 None 197 F35341-401 1" Standard 5.9 5 Mechanical 353 F35462-421
1/2" Coalescing 2.3 0.3 Mechanical 197 F35342-301 AUTO DRAIN • METAL BOWSL W/ SIGHT GLASS
3/4" Standard 2.3 5 None 216 F35351-401 3/4" Coalescing 5.2 0.3 Mechanical 288 F35452-311
AUTO DRAIN • METAL BOWLS W/ SIGHT GLASS 3/4" Standard 5.9 5 None 288 F35451-411
3/8" Standard 2.8 5 None 156 F35331-411 3/4" Standard 5.9 5 Mechanical 288 F35452-411
3/8" Coalescing 2.8 0.3 Mechanical 156 F35332-311 1" Coalescing 5.2 0.3 Mechanical 353 F35462-311
1/2" Standard 2.8 5 None 197 F35341-411 1" Standard 5.9 5 None 353 F35461-411
1/2" Coalescing 2.8 0.3 Mechanical 197 F35342-311 1" Standard 5.9 5 Mechanical 353 F35462-411
3/4" Standard 2.8 5 None 216 F35351-411

For further model options, port sizes, and
information regarding flow charts, unit dimensions, andproducts.com/accessories
replacement parts, and more, go to: [
