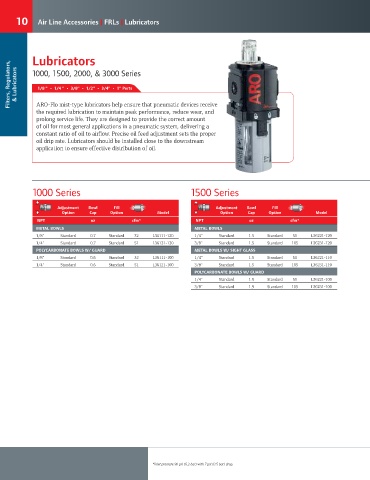

P. 10
10 Air Line Accessories | FRLs | Lubricators
Lubricators
1000, 1500, 2000, & 3000 Series
1/8 " • 1/4 " • 3/8" • 1/2" • 3/4" • 1" Ports
ARO-Flo mist-type lubricators help ensure that pneumatic devices receive
the required lubrication to maintain peak performance, reduce wear, and
prolong service life. They are designed to provide the correct amount
of oil for most general applications in a pneumatic system, delivering a
constant ratio of oil to airlow. Precise oil feed adjustment sets the proper
oil drip rate. Lubricators should be installed close to the downstream
application to ensure effective distribution of oil.
1000 Series 1500 Series
Adjustment Bowl Fill Adjustment Bowl Fill
option Cap option Model option Cap option Model
NPT oz cfm* NPT oz cfm*
METAL BoWLS METAL BoWLS
1/8" Standard 0.7 Standard 32 L36111-120 1/4" Standard 1.5 Standard 51 L36221-120
1/4" Standard 0.7 Standard 51 L36121-120 3/8" Standard 1.5 Standard 105 L36231-120
PoLYCARBoNATE BoWLS W/ GUARD METAL BoWLS W/ SIGHT GLASS
1/8" Standard 0.6 Standard 32 L36111-100 1/4" Standard 1.5 Standard 51 L36221-110
1/4" Standard 0.6 Standard 51 L36121-100 3/8" Standard 1.5 Standard 105 L36231-110
PoLYCARBoNATE BoWLS W/ GUARD
1/4" Standard 1.9 Standard 51 L36221-100
3/8" Standard 1.9 Standard 105 L36231-100
*Inlet pressure 90 psi (6.2 bar) with 7 psi (0.5 bar) drop.
